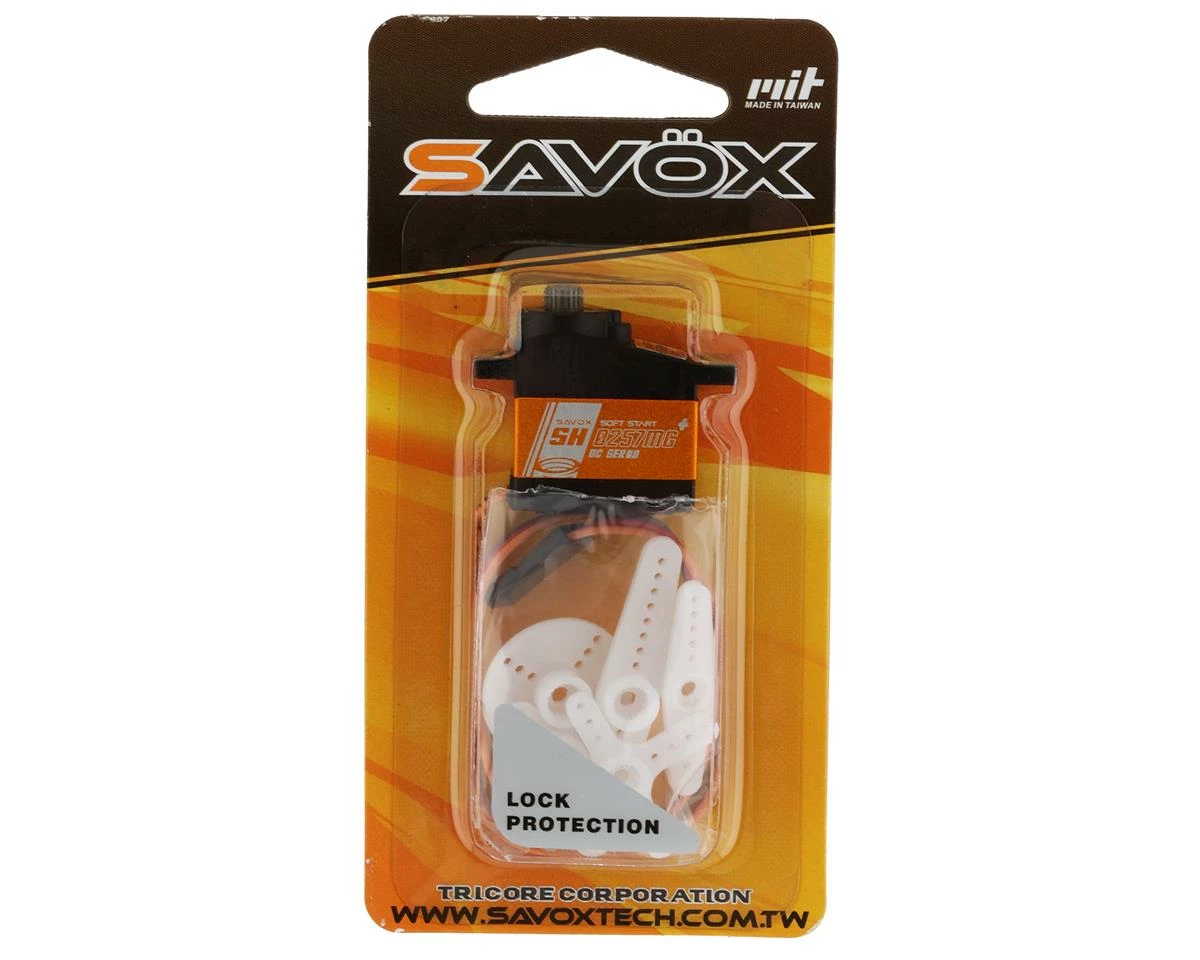

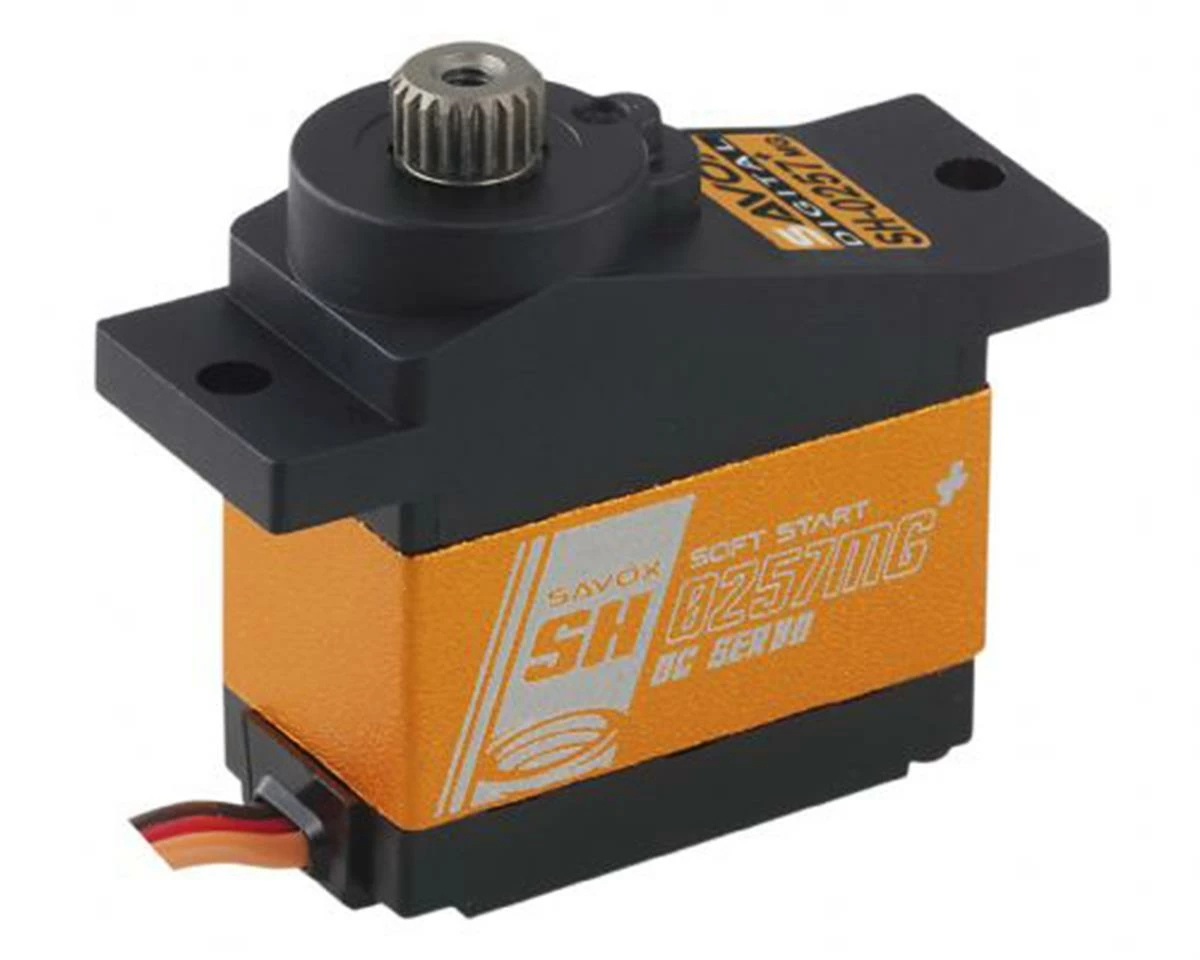

Savox SH-0257MGP Digital Metal Gear “High Speed” Micro Servo

This is the SH-0257MGP Digital Metal Gear “High Speed” Micro Servo. The Savox SH-0257MG metal-gear, high-torque, digital, micro servo produces as much output torque as larger servos, but without sacrificing speed.

“Plus” series servos feature Soft Start and Sanwa SSR compatibility.

*NOTE: Certain combinations of receiver and ESC have been found to cause “Brown Out” issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications.

Features:

• Metal gear train ensures durability and longevity.
• Aluminum middle case allows for cooler operating temperatures.
• Ideal for small planes, and 450 size helicopters.

Specifications:

• Torque:
• @4.8v: 1.8kg (25.0oz-in)
• @6v: 2.2kg (30.6oz-in)
• Speed:
• @4.8v: 0.13 sec/60 deg
• @6v: 0.09 sec/60 deg
• Dimensions (LxWxH): 22.8×12.0x25.4mm
• Weight: 14.0g

This product was added to our catalog on August 24, 2022
