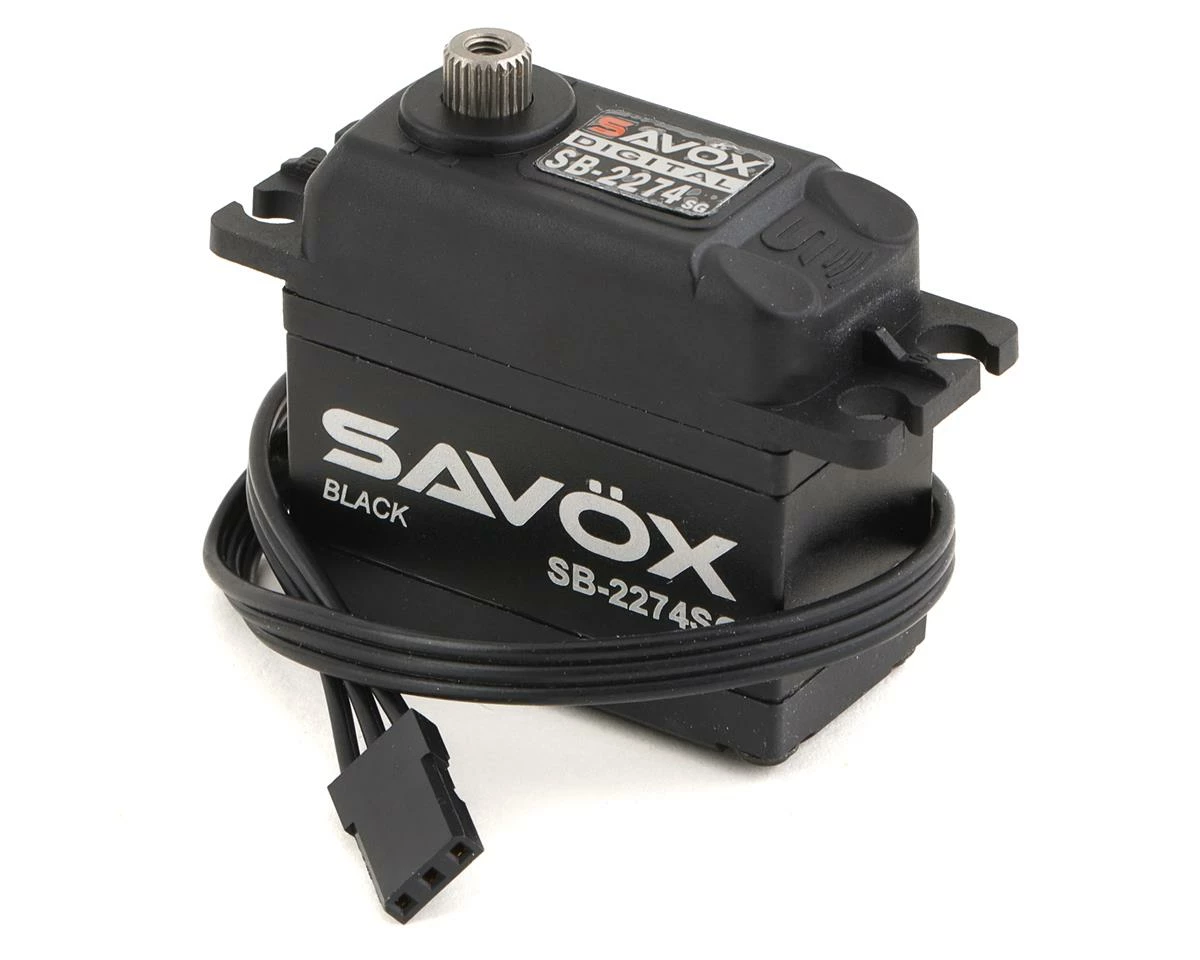

Savox SB-2274SG “High Speed” Black Edition Brushless Steel Gear Digital Servo (High Voltage)
Original price was: $112.99.$79.09Current price is: $79.09.
- Excellent customer service online in a timely manner
- Friendly, efficient service, always online.
- Safe and Secure Payments, Always
- Best price, safe shopping guarantee
The Savox SB-2274SG SB-2274SG “High Speed” Black Edition Brushless Steel Gear Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. This servo is a great option for 1/10 off road, 1/8 buggies, and large scale aircraft.Â
Features:
- Unique steel gear train
- Capable of HV operation
- Brushless motor for smooth operation and efficiency
- Ideal for 1/10, 1/8 buggies, and large scale aircraft
Specifications:
- Torque:Â
- @ 6v: 20.0kg/277.7oz-in
- @ 7.4v: 25.0kg/347.2oz-in
- Speed:Â
- @ 6v: 0.105 sec/60 deg
- @ 7.4v: 0.08 sec/60 deg
- Dimensions: 40.3×20.2×38.7mm (LxWxH)
- Weight: 69.0g
- Operating Temperature: 14° – 122°F (-10° – 50°C)
- Running Current (no load): 180mA @6.0V, 220mA @7.4V
- Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
- Idle Current: 5mA @6.0V, 5mA @7.4V
- Wire Length: 300 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 ? 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 ? 2200 µ second
- Maximum Travel: Appx 130° (900 ? 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
