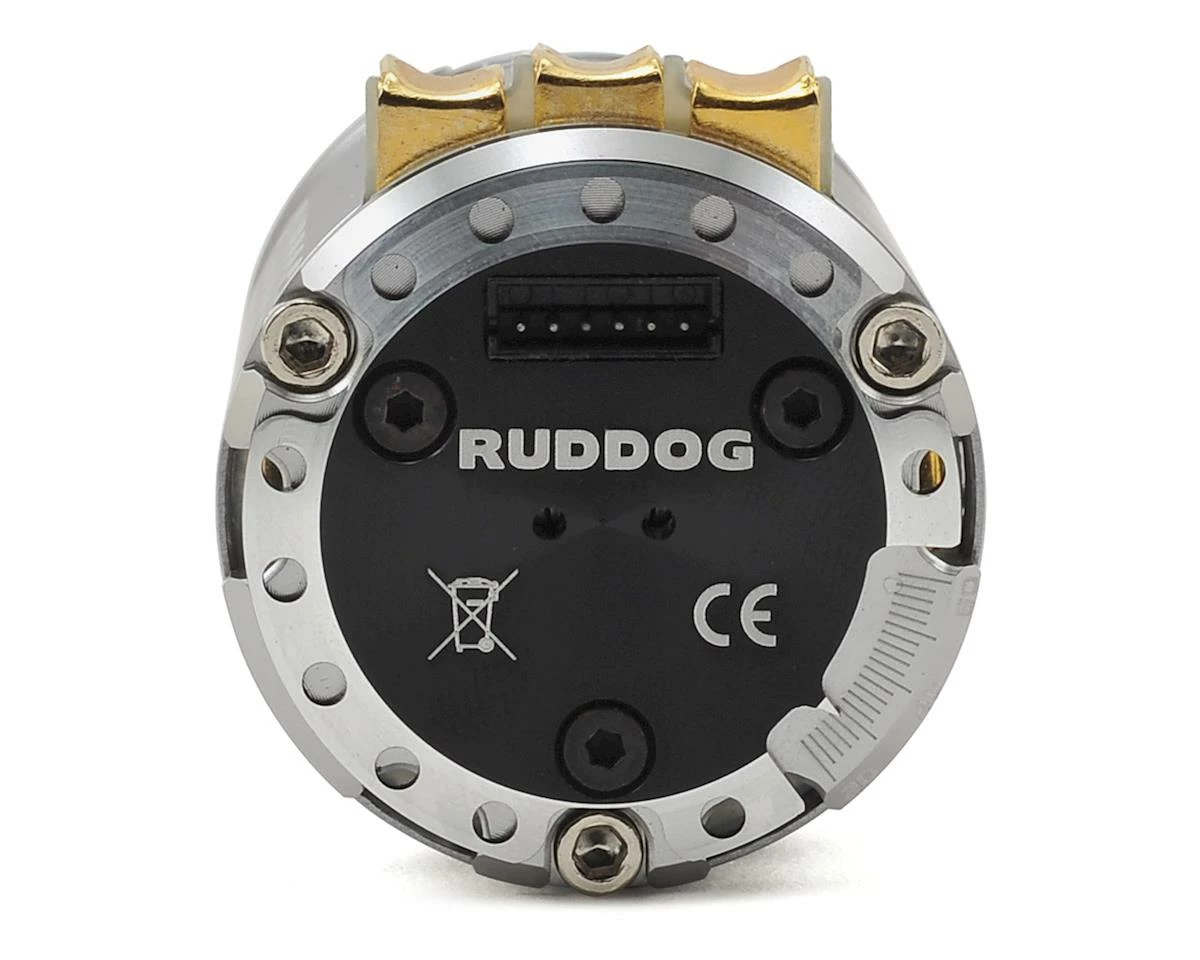

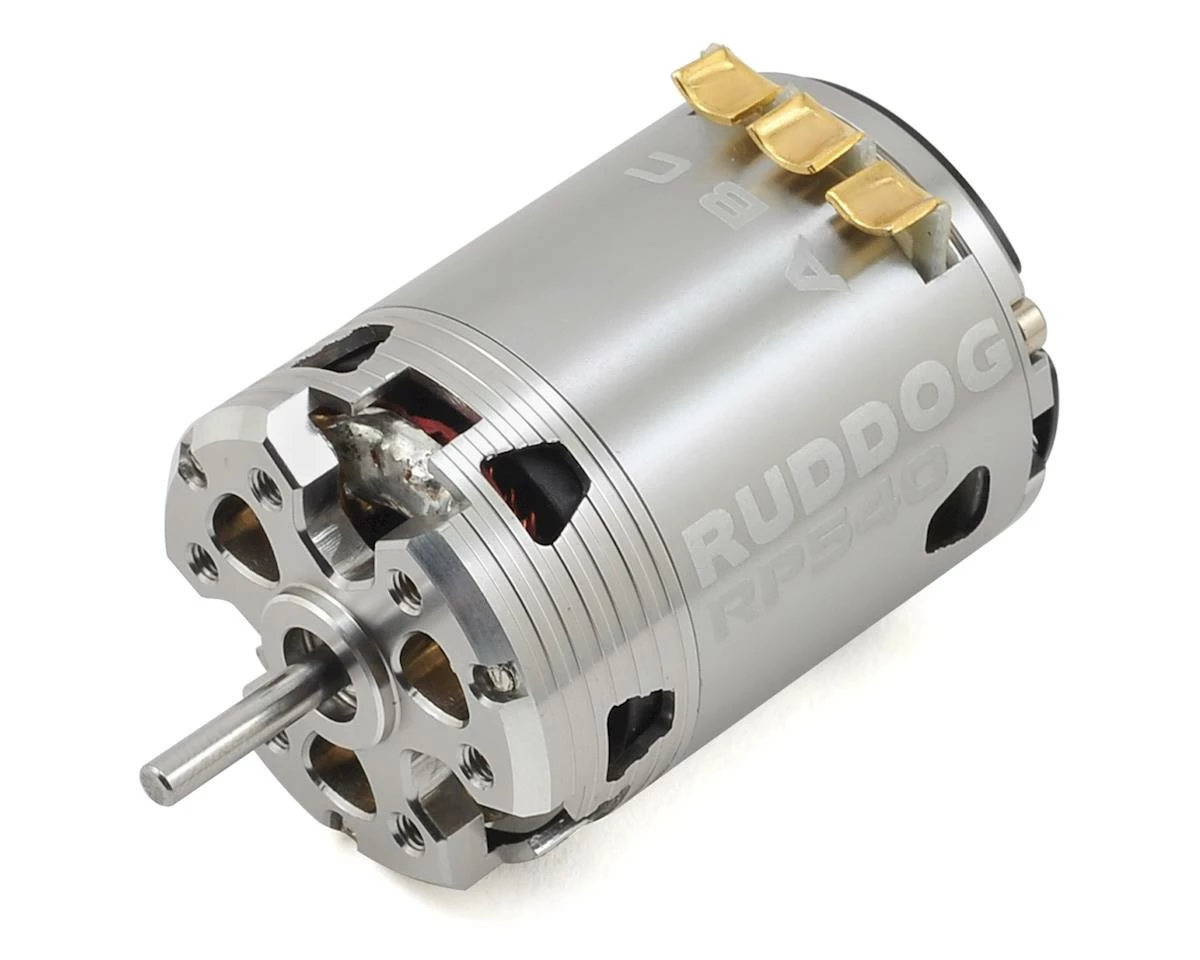

Ruddog RP540 540 Sensored Brushless Motor (5.0T)

The RUDDOG RP540 sensored competition brushless motor was developed using the latest technology in terms of manufacturing and production of competition grade motors. Weighing in at a lightweight 170g the motor is made using highest grade materials including Japan-made steel stator plates and high-temperature 99.9% pure copper wire. Large venting openings improve cooling and provide constant performance over the full run, even in hot conditions. The silver can color looks good on, and off the track.



Specifications:
Weight: 165-175g depending on turn count
Voltage: 2S/7.4V
Size: 540 = 36×51.75mm
Shaft diameter: 3.175mm
KV rating: 7100 RPM/V
Power: 450 Watts
Internal Resistance: 0.0056 Ohm
Max. Current: 104A
Rotor: ￠12.3*￠5
Timing: Adjustable from 20 to 60°
Sensor: Standard Sensor Port / exchangeable
EFRA legal: Yes

Includes:

• 5.0T RP540 Motor

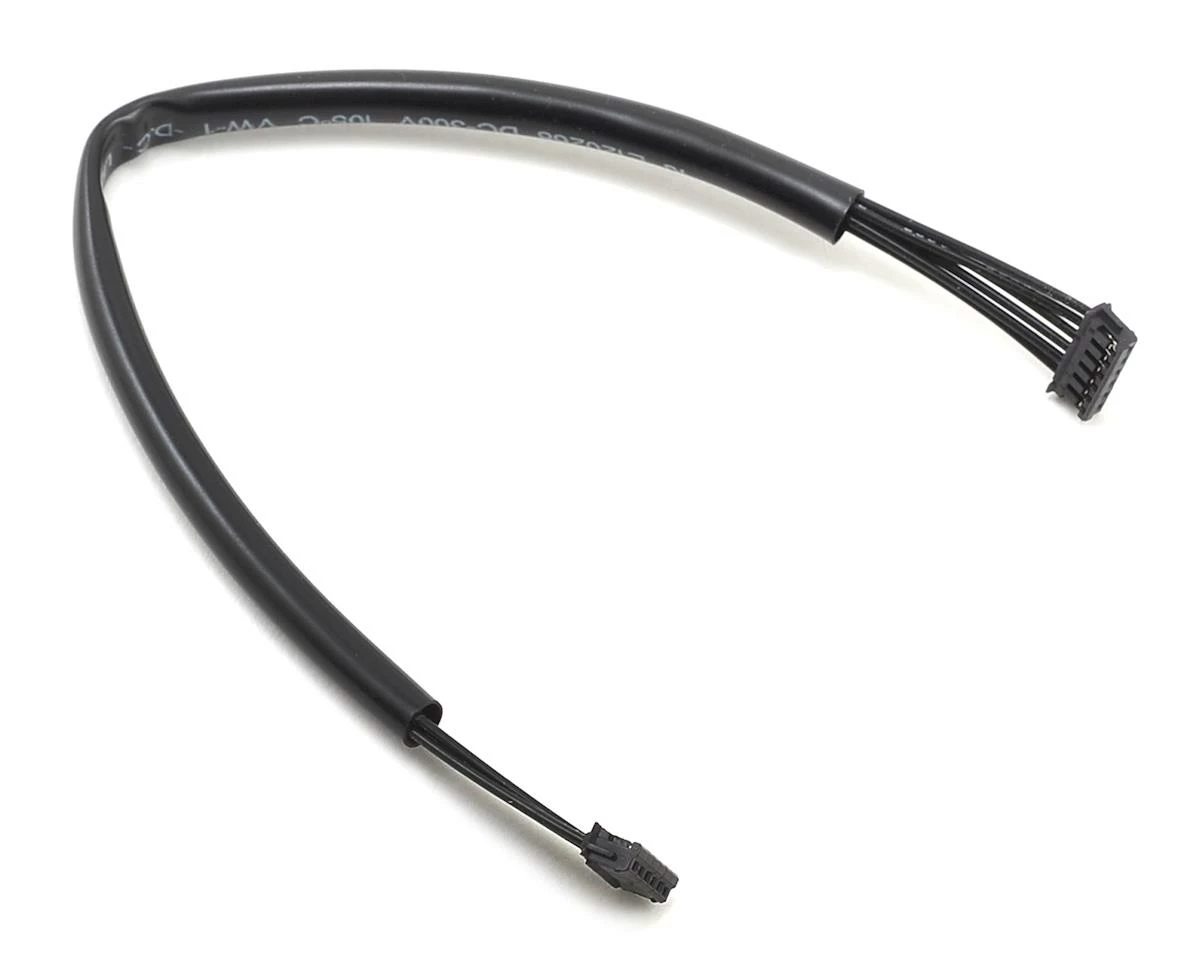

• 200m Sensor Lead
• Manual in German and English language

This product was added to our catalog on November 10, 2016
