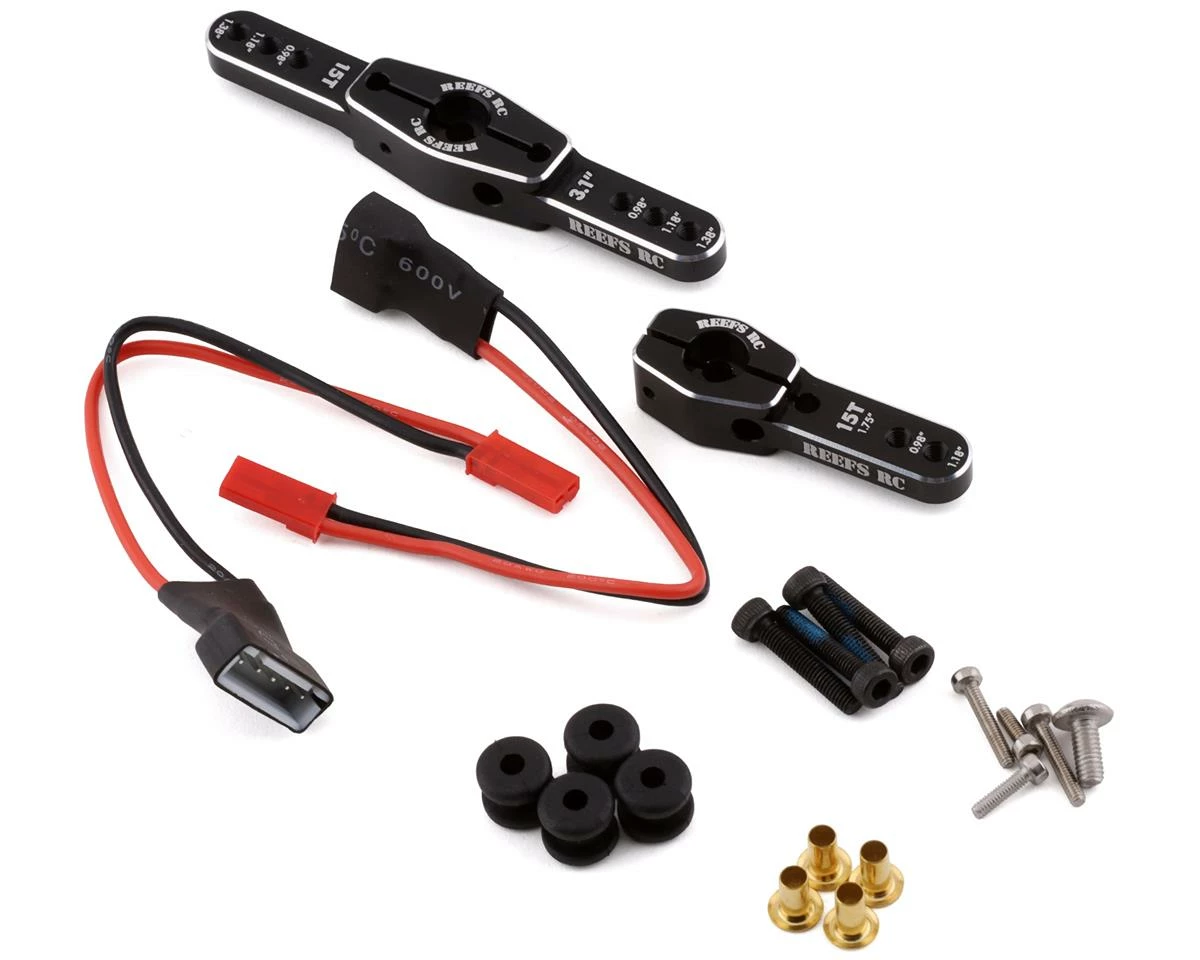

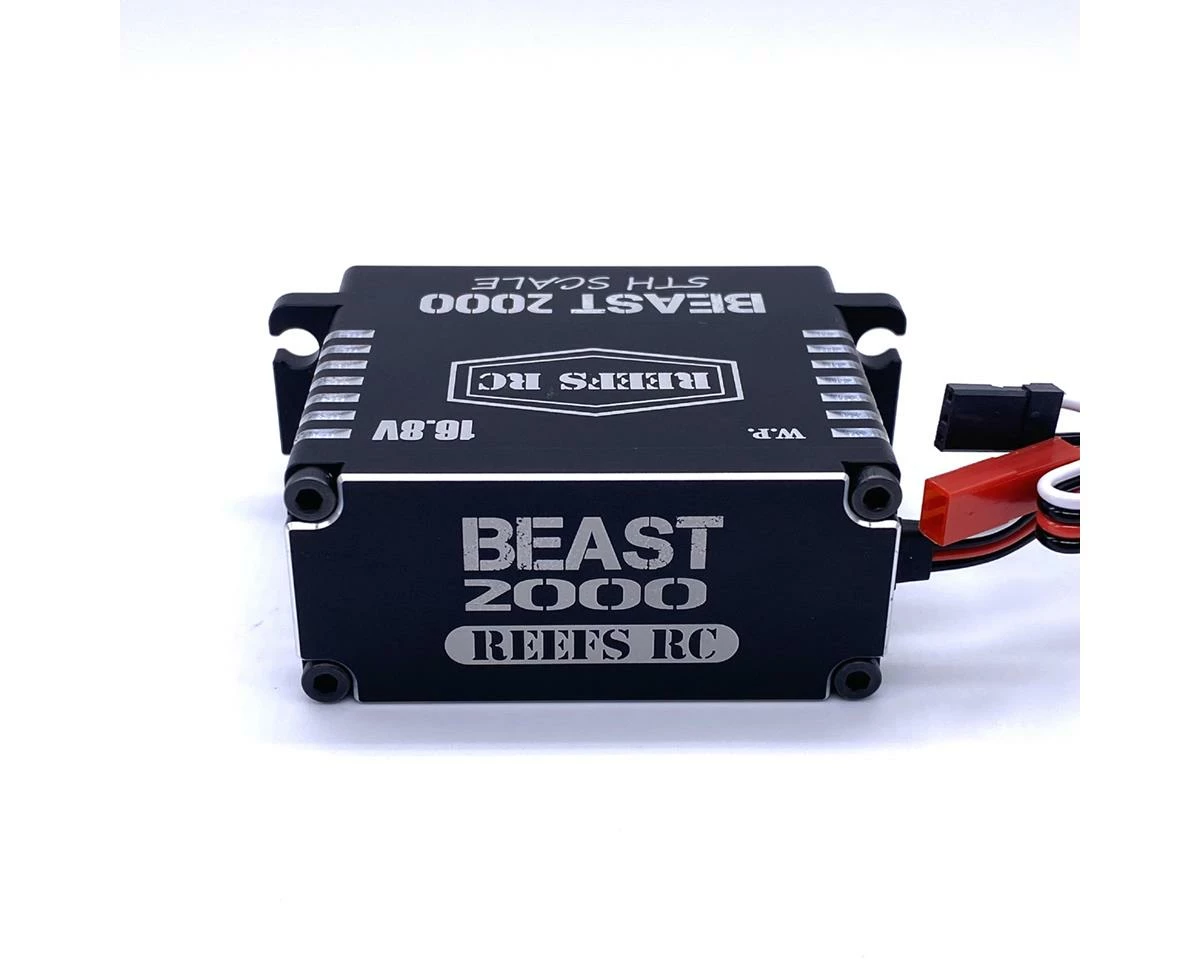

Reefs RC Beast 2000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 2000oz-in. at 16.8V and 0.09/60° sec! To connect this servo there is a standard servo connector with a ground and signal wire and a JST connector for main power and ground. Two power adapters are included to connect the JST connector to the balance lead of either a 3S or 4S battery. Package includes one servo, two power adapters, two servo horns and hardware.
Features:
- High torque and high speed brushless servo
- Magnetic angle sensor
- Waterproof
- 16.8V capable
- Pulse width modulation control
- Includes Reefs single and double servo horn
Specifications:
- Voltage:Â 7.4-16.8V
- Waterproofing:Â 7 Point Seal
- Mechanical Angle:Â No Limit
- Material:Â Steel Gears/CNC Aluminum Casing
- Bearing Type:Â 5 Ball Bearing
- Wires:Â 22AWG
- Weight:Â 10oz (285g)
- Dimension:Â 2.59×1.18×2.32in (LxWxH)
- Torque:
- 10V:Â 1000oz-in
- 11.1V:Â 1250oz-in
- 12V:Â 1450oz-in
- 16.8V:Â 2000oz-in
- Speed:Â
- 10V: 0.10/60° sec
- 11.1V: 0.11/60° sec
- 12V: 0.10/60° sec
- 14.4V: 0.09/60° sec
- 16V: 0.08/60° sec
- Spline:Â 15T
- Dead Band Width:Â 2uSec
