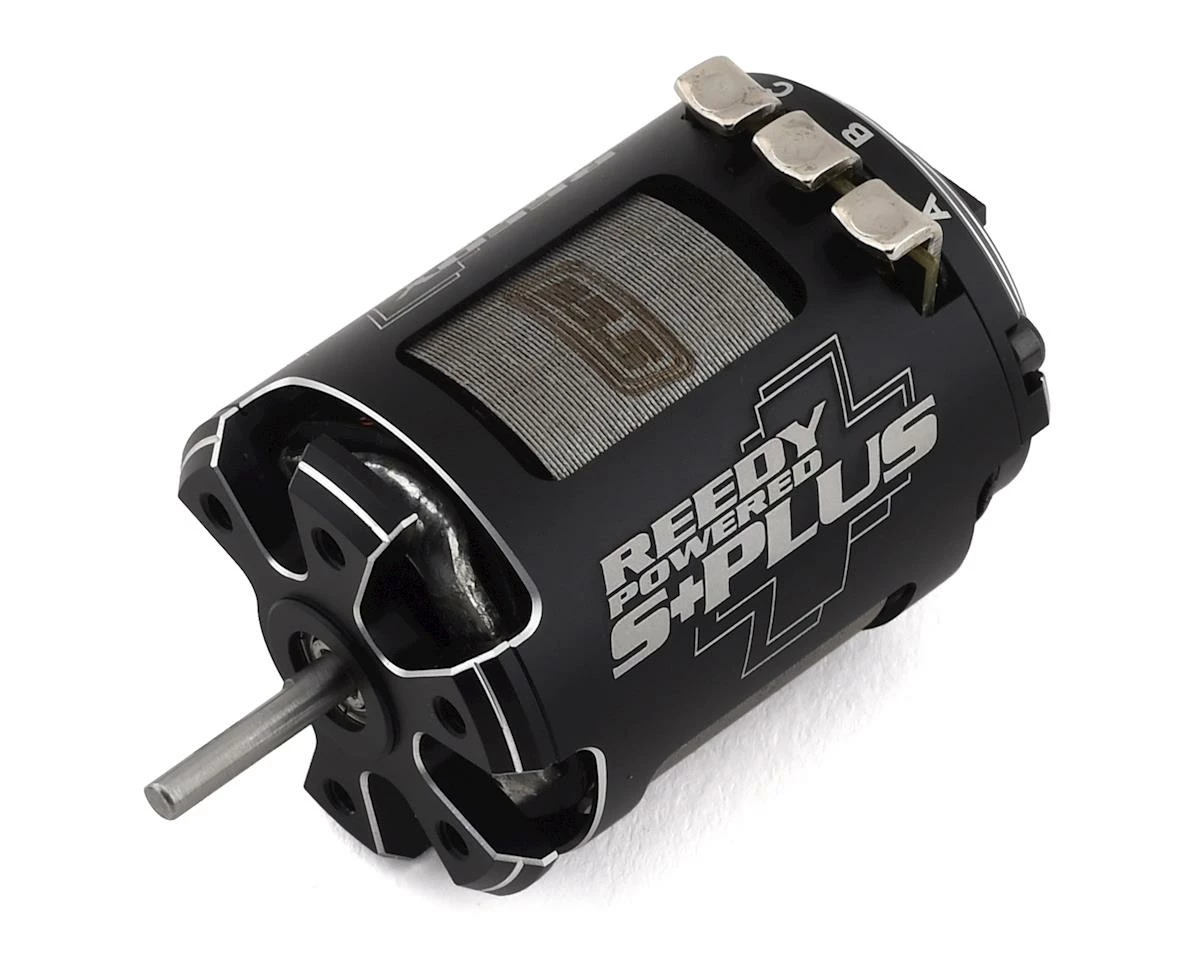

Reedy S-Plus Competition Spec Brushless Motor (25.5T)

The Reedy S-Plus Competition Spec Brushless Motor was developed over several months of behind-the-scenes track testing. The heart of the S-Plus is a thin leg stator that allows shorter wire lengths, resulting in a massive reduction in resistance. This reduction in resistance, hovering just above the minimum allowed by R.O.A.R., means that the S-Plus is Reedy’s most powerful spec motor ever!

The thin-leg stator offers another benefit — weight reduction. By reducing the motor’s weight, handling and chassis turning flexibility improves. Machined parts such as the can, timing cap, back plate, and sensor assembly have been placed on a diet. An entire section of the front plate has been removed to reduce weight with an added benefit of allowing the user to re-position it to lower CG depending on which type of car it is being installed in. A savings of nearly 30g has been achieved! Additionally, the motor’s length has been reduced by more than 2mm, which aids left/right balance and moves mass towards the center of the chassis.

A redesigned high-strength, balanced rotor is more powerful that its predecessor. Because the rotor is interchangeable with those in 540-M3 spec motors, a wide range of tuning options are already available. Precision stainless steel ball bearings have been fitted to accommodate high RPM loads with exceptional efficiency and reliability.

Features:

• CNC-machined lightweight can
• Low-resistance stator (stator length: 19.7mm)
• High-strength, balanced rotor
• Silver-plated solder tabs
• Precision ball bearings
• Built to ROAR Specifications

Specifications:
Cells: 1-2S LiPo
Diameter: 35.8mm
Length: 50.4mm
Shaft Diameter: 3.15mm
Weight: 166g

This product was added to our catalog on January 24, 2019
