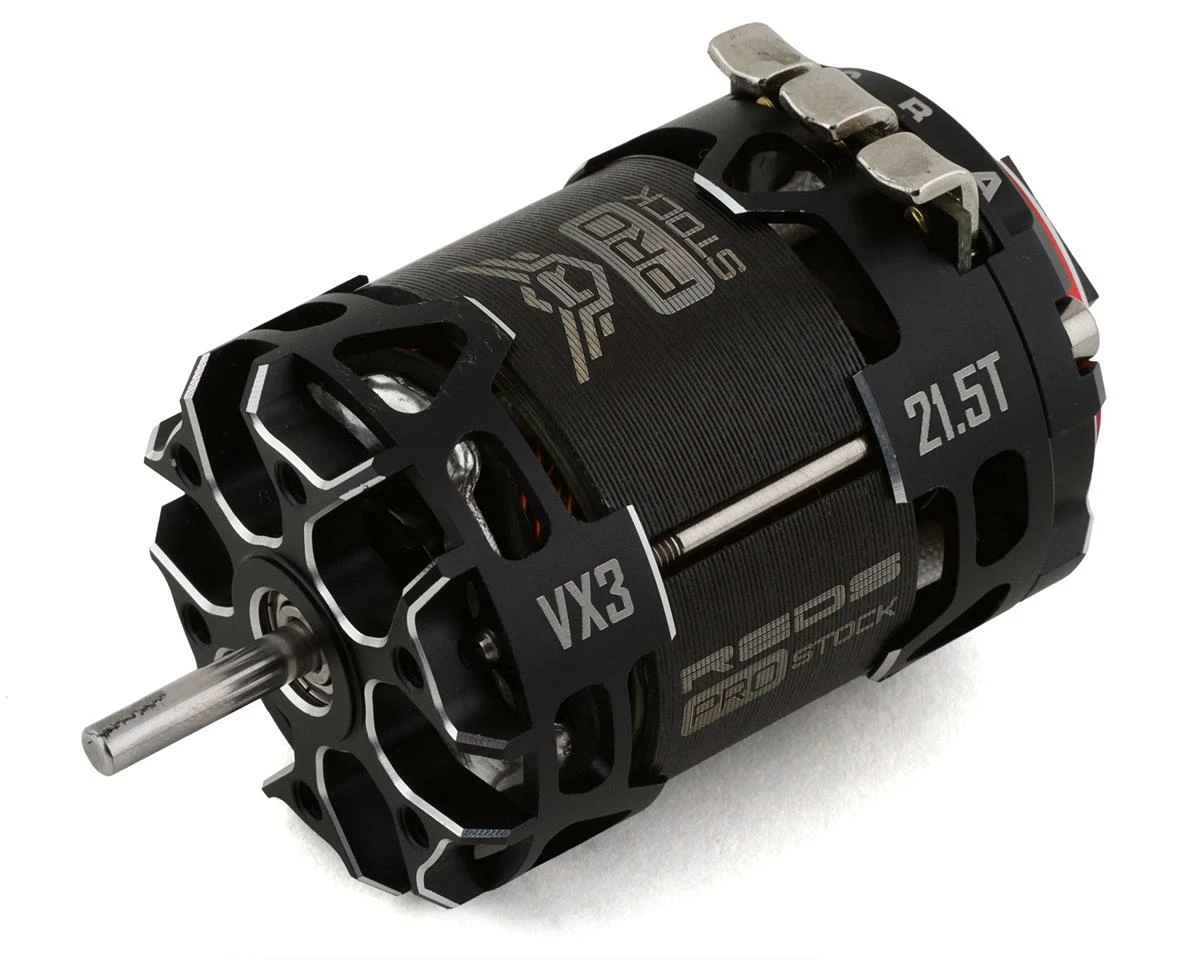

REDS VX3 Pro Stock 540 “Factory Selected” Sensored Brushless Motor (21.5T)

The REDS VX3 Pro Stock 540 “Factory Selected” Sensored Brushless Motor has been developed in cooperation with REDS team drivers to create a two pole motor that delivers the highest level performance. This Factory Selected version has been hand built and selected to be within the top 5% of tested motors with Hall Sensor variance of 1 degree or better.

The internal structure of the VX3 PRO STOCK has been improved with a ultra high performance stator for higher performance and lower temperature and precision balanced neodymium high-temperature rotor. Moreover, VX3 brushless motors incorporate copper magnetic wires and low resistance collector rings that allow very low internal resistance. Combine this with the unique VX3 housing and you get an improved cooling system that helps to improve heat dissipation and maximize cooling.

Updates from the Gen 2 line include a higher quality precision balanced Neodymium high-temperature rotor that improves power and torque. It also features copper wire and low resistance collector rings that allow for very low internal resistance, creating increased power with less heat build-u

VX3 motors feature precision machined 7075-T6 Aluminum housing with maximized cut-outs and additional openings to make them ultra light. Moreover, The unique VX3 Housing has been designed to allow efficient heat dissipation and maximize cooling.

Furthermore, REDS VX3 540 PRO STOCK Sensored Brushless Motors feature redesigned silver plated solder tabs, precision bearings for precise running and longevity and precisely adjusted and optimized timing range from 0° to 50°.

Rotor Diameter: 12.3mm

Motor Diameter: 35.8mm

Motor Length: 51.4mm

Shaft Diameter: 3.17mm

Weight: 140-165g
