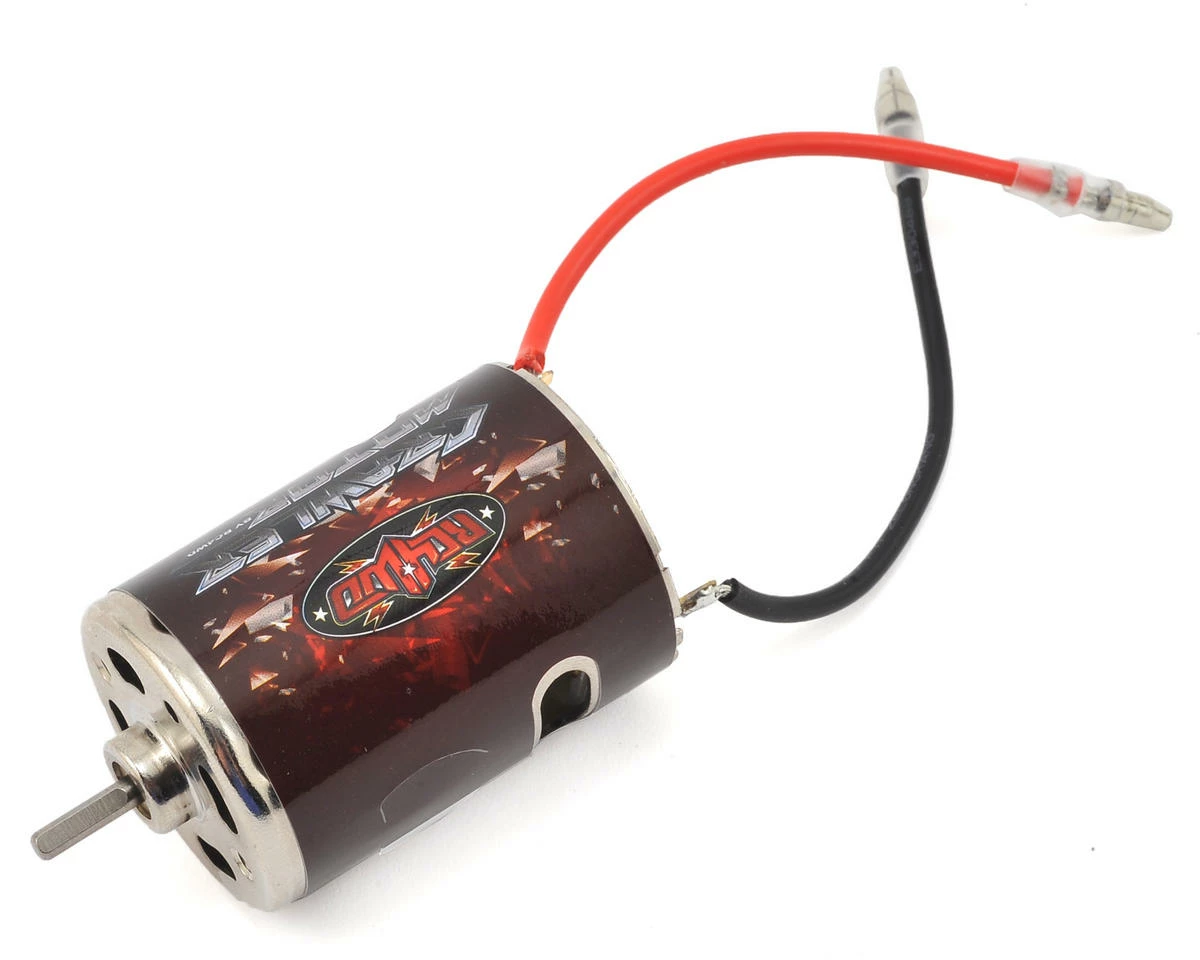

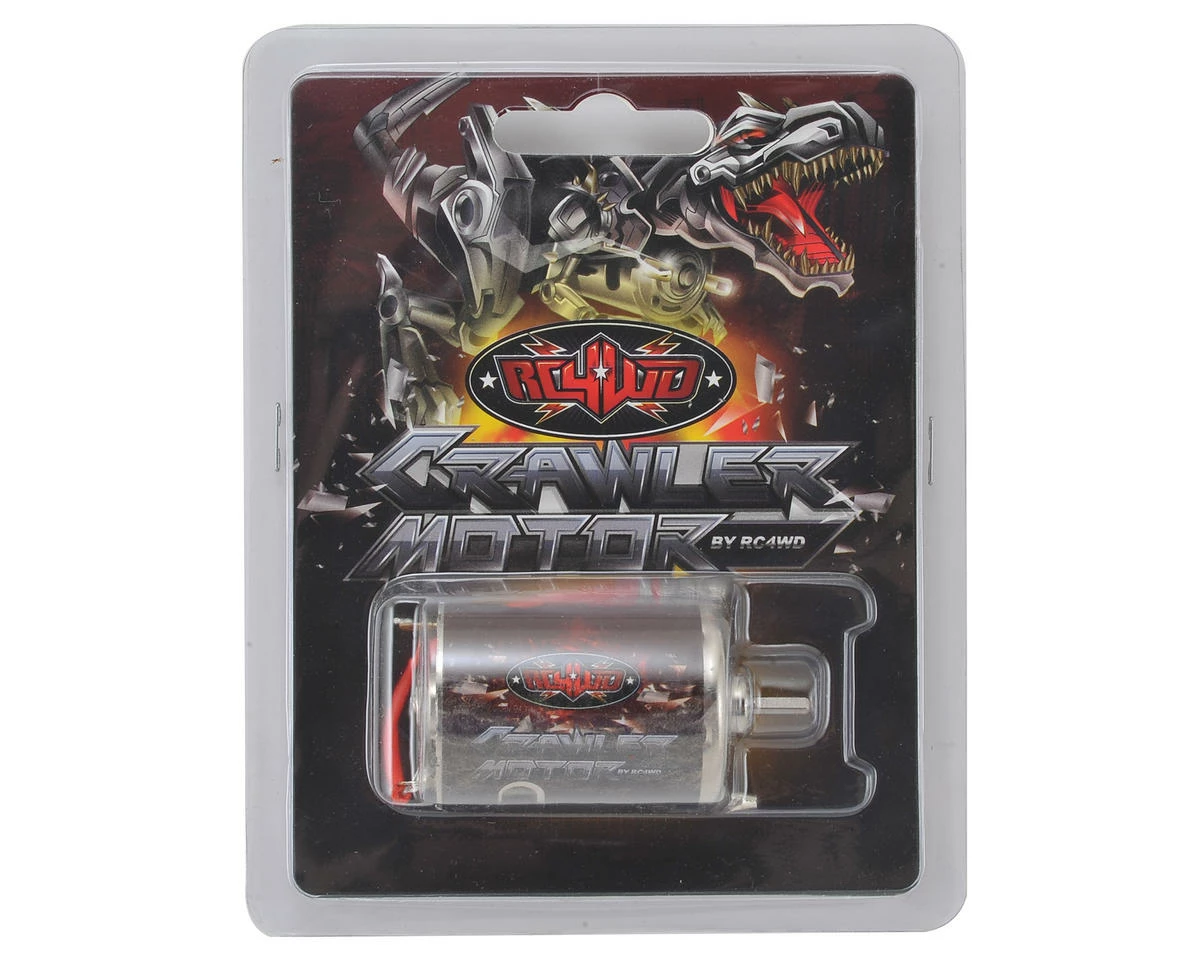

RC4WD 540 Crawler Brushed Motor (20T)

RC4WD 540 Crawler 20 Turn Brushed Motor.

Features:

• Custom Made 540 Steel Case
• Chrome Plated Case
• Build in Capacitor for Minimizing Glitch
• High Torque Magnet and Rotor
• Small Footprint (50mm long)
• Tuned for Rock Climbing and Scale Driving
• Polished Bushings

Specifications:
Body OD: 1.39in / 35.5mm
Length: 1.96in / 50mm
Output Shaft Length: 0.43in / 11mm
Output Shaft OD: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Weight: 5.5oz / 156g
(At No Load) RPM @ 7.2V: 20000 +10% , 2Amp Current
(Rated load) RPM @ 7.2V: 18400 +10%, 7.92Amp Current
Designed Operating Temperature Range: -10°C to +60°C
Shaft end play: 0.1mm to 0.5mm
Noise Level: < 78DB
