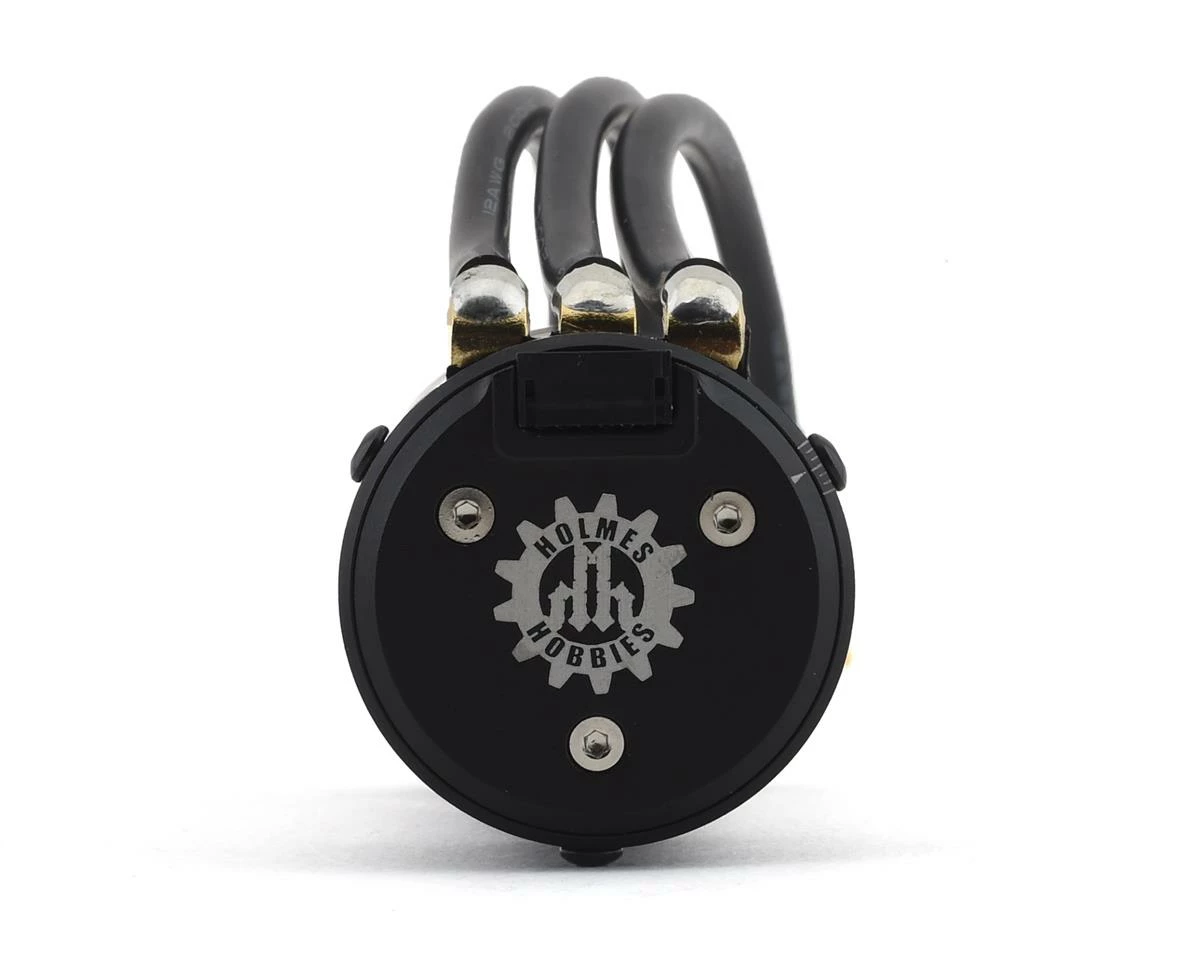

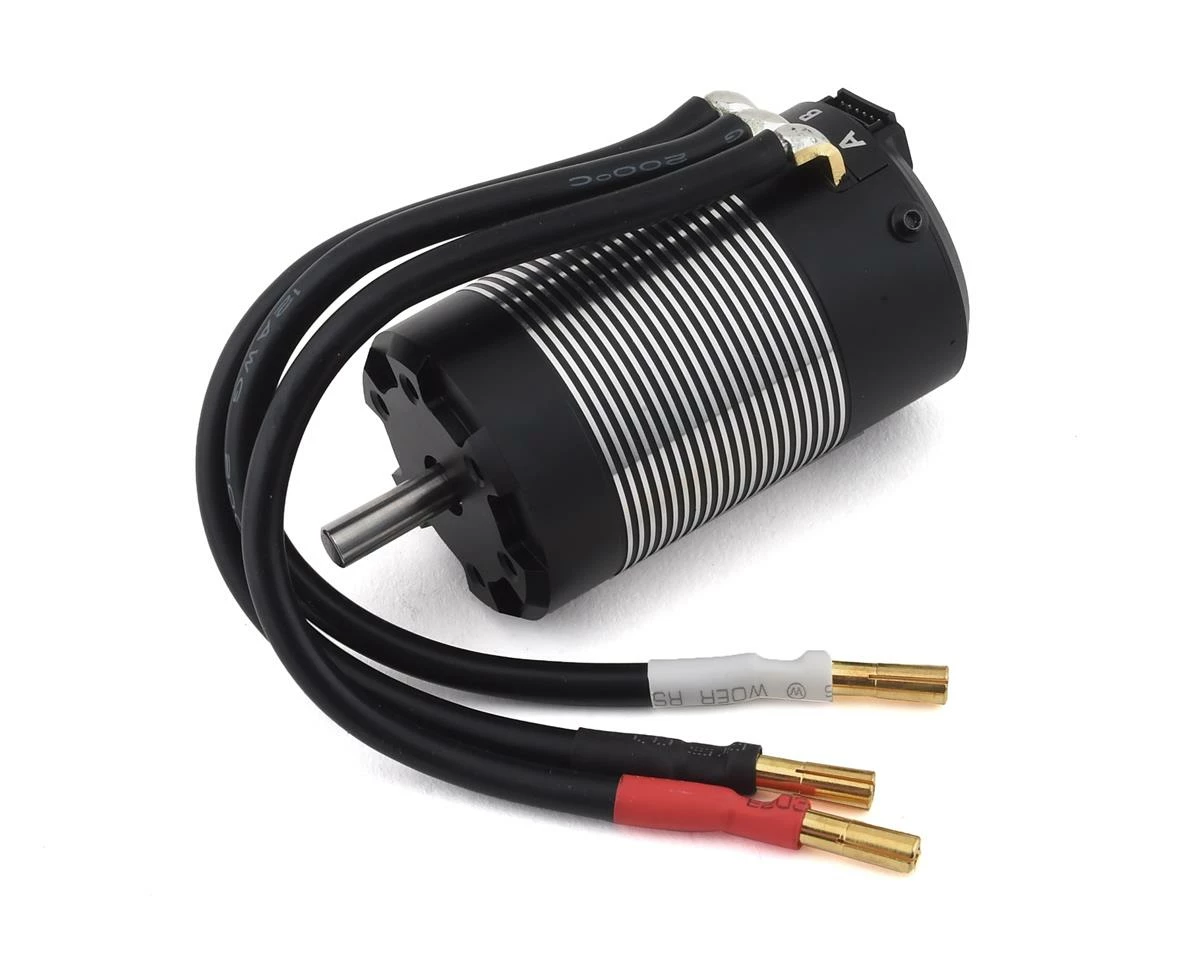

Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Crawler Motor (2700kV)

The Holmes Hobbies Puller Pro R 540-L V2 Waterproof Sensored Crawler Motor is a rock race honed variation with higher quality materials for less heat, more torque, and less brake fade. It retains great low speed control and throttle feel, giving you an edge whether in the rocks or on the straights. An absolute beast on 4s!



Designed for dominating 1/10th scale U4, rock racing, endurance, G6, and trail adventure. Installs into Axial Yeti & Bomber, Losi Rock Rey, Traxxas TRX-4, and similar vehicles accepting 550 size motors. Recommended battery 2s or 4s lipo, 3800mah 35c or greater. Recommended ESC 1/10th or 1/8th scale suitable for 4×4 vehicles. If you get your motor wet, you must clean, dry, and relube bearings to avoid damage.

Warning! Do not extend screws into motor plate more than 3.5mm or damage to windings may occur.

• Four pole 18mm diameter x 31mm length rotor
• Twelve slot stator
• 180C resin impregnated copper windings
• 200C rated high strength neodymium magnets
• Oversized bearings
• Sensored
• Waterproof sensor board

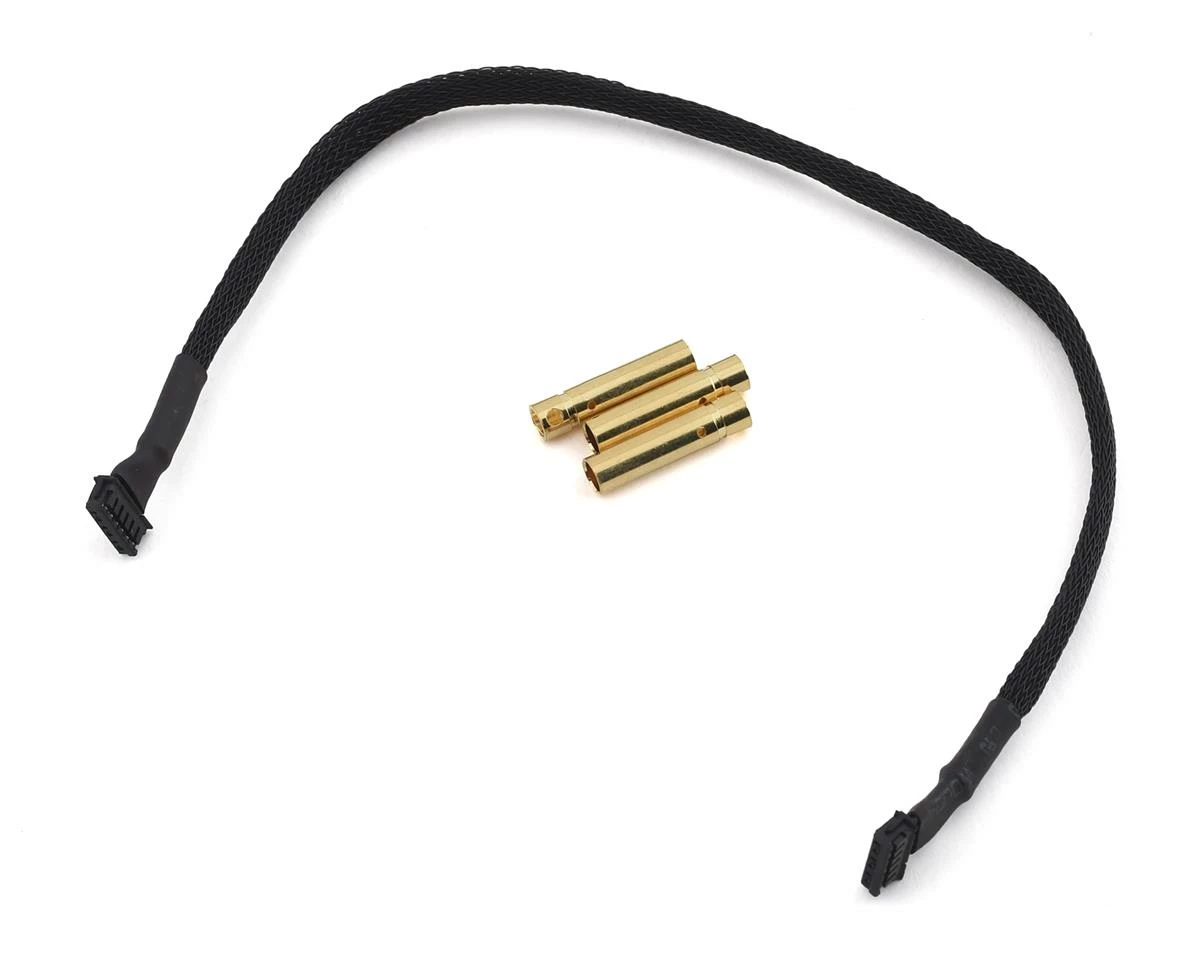

• Sensor wire included

NOTE: 1 year warranty from date of purchase. Does not include damage from overheating, rusting, or improper installation.

Type: “550” size motor

Mount Pattern: 25mm

Mounting Hardware: 3mm screws

Shaft Diameter: 5mm

Can Size: 36mm diameter x 60.5mm length

Weight: 236.5g

RPM: 60,000 rpm max
