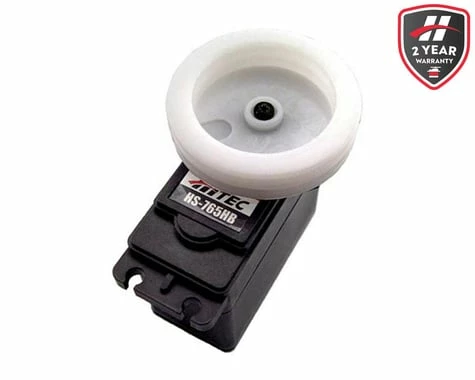

Hitec HS-765HB Universal Sail Arm Analog Servo

The HS-765HB sail arm servo has up to 140 degrees of travel and comes with a Heavy Duty 4.5 inch arm. With its dual ball bearing supported output shaft the HS-765HB will provide years of reliable service for your R/C sailing applications to 2 meters.

Key Features:

• Up to 140 degrees of travel
• 4.5 inch arm
• Dual Ball Bearing Supported Output Shaft
• *** Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail

Specifications:

• Speed:
• 4.8V: 0.28 sec/60 deg.
• 6.0V: 0.23 sec/60 deg.
• Torque:
• 4.8V: 153 oz/in
• 6.0V: 183 oz/in
• Length: 2.32in (59mm)
• Width: 1.14in (29mm)
• Height: 1.97in (50mm)
• Weight: 3.88oz (110g)

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on July 2, 2020
