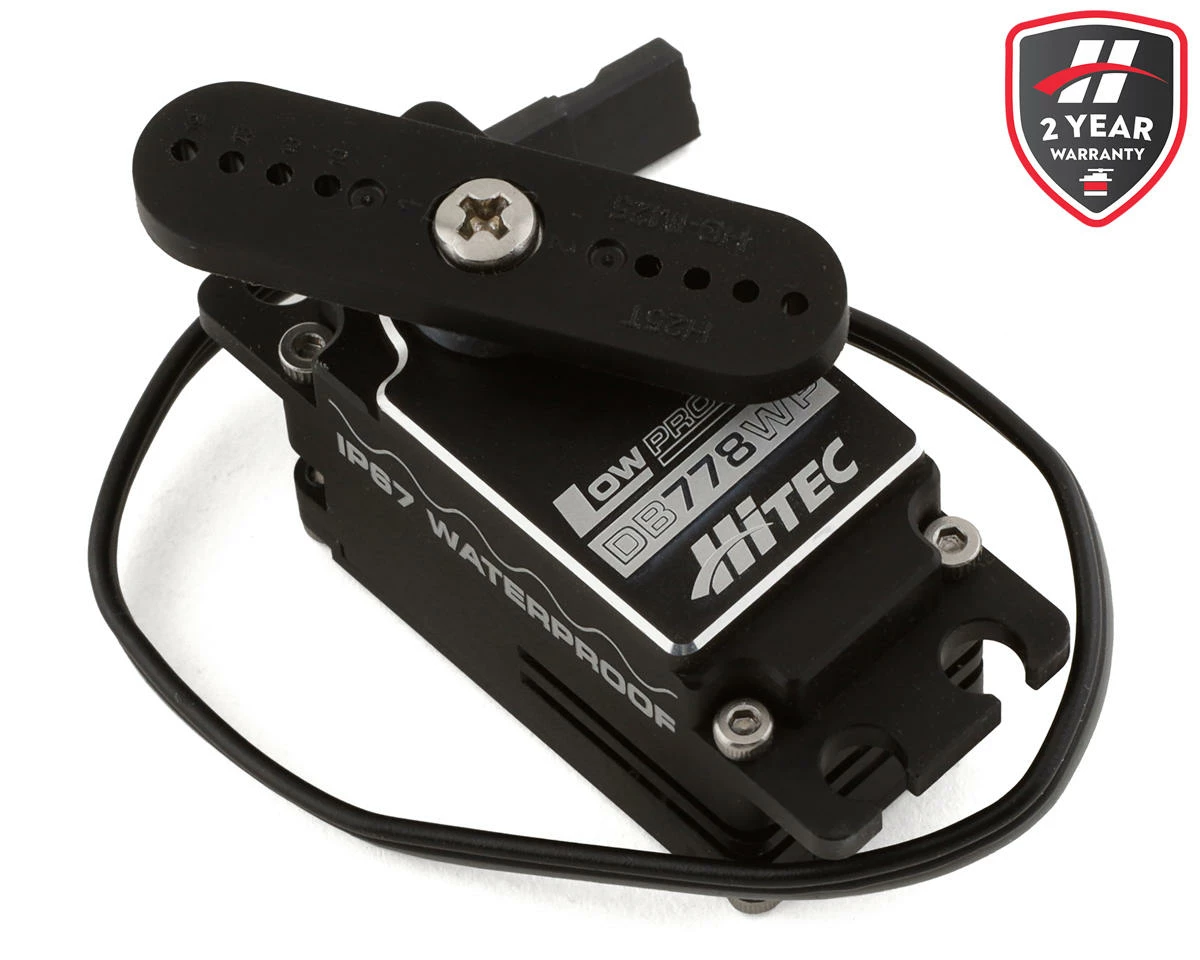

Hitec DB778WP 32-Bit MCU Low Profile Ultra Torque Waterproof Servo (High Voltage)

Original price was: $139.99.Current price is: $97.99.

SKU: 1400567 Categories: High Voltage, Servos, Standard Tag: Hitec

Excellent customer service online in a timely manner
Friendly, efficient service, always online.
Safe and Secure Payments, Always
Best price, safe shopping guarantee

Description
Reviews (0)

The Hitec DB778WP 32-Bit MCU Low Profile Ultra Torque Waterproof Servo is a high-performance, low profile DB778WP. Manufactured with exclusive “hitecnology” industrial servo innovation, the DB778WP’s design and premium-quality construction was built for demanding commercial applications, yet its superior torque also makes it the perfect hobby servo for 1/10th 2WD & 4WD off-road buggies and touring cars. Engineered with an ultra-efficient brushless motor, high-resolution digital circuit, hardened steel gears and an all-aluminum, IP-67 rated waterproof case, the DB778WP excels when pushed to the limits on ultra-high bite carpet or clay tracks. Take on the competition and drive hard, knowing you are backed by Hitec’s 2-year warranty which affords you the added protection you deserve! Invest in the best with Hitec!

Features:

Voltage Range is 3.7V – 8.4V
Ultra-Efficient Brushless Motor
Hardened Steel Gears
All Aluminum Case
IP-67 Waterproof Rated
High Response, High Resolution Circuitry
32-Bit MCU Technology / 4096 Resolution
Smart Sense Technology for Servo Analytics
Full Programmability with DPC11 or HFP-30 (sold separately)
H25T Industry Standard Output Spline

Specifications:

Operating Voltage Range (Volts DC): 3.7V ~ 8.4V

Speed (Second @ 60°): 0.08 @ 8.4V

Maximum Torque Range: 283.56 oz. / in. @ 8.4V (20.41 kg.cm @ 8.4V)

Current Draw at Idle: 28mA @ 7.4V

No Load Operating Current Draw: 600mA @ 7.4V

Stall Current Draw: 5,500mA @ 7.4V

Dead Band Width: 1usec

Dimensions: 41.0 x 21.0 x 26.5mm

Weight: 68.0g

Circuit Type: 32bit Programable Digital

Motor Type: Brushless

Gear Material: 5 Steel Gears

Output Shaft (type / Ømm): H25T

Case Material: Aluminum

Dust / Water Resistance: IP-67 Rated

Connector Gauge (AWG) / Strand Count: 20AWG

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
