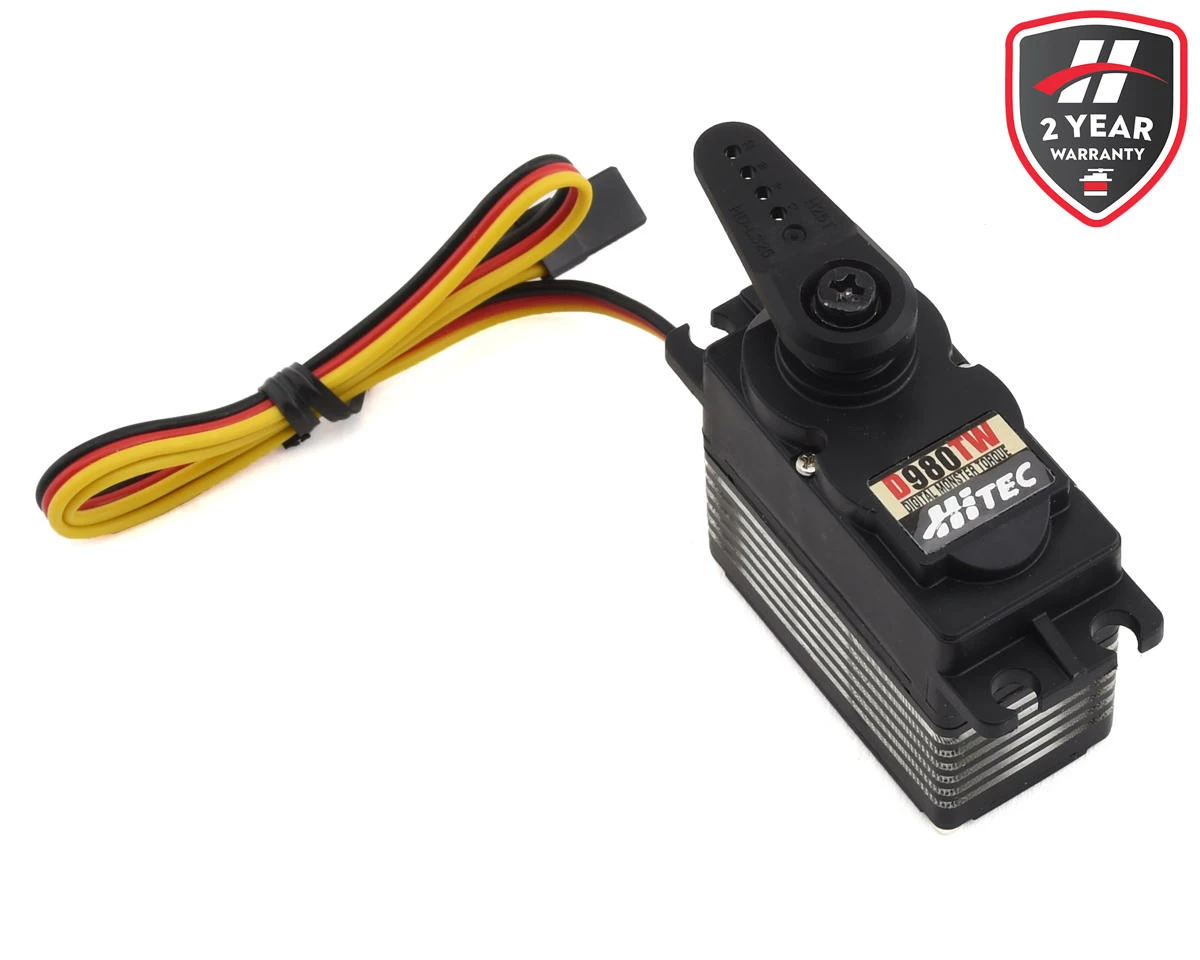

The Hitec titanium D-980TW monster torque, titanium gear servo is part of the cutting edge D-Series servo line. This servo combines industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and 12-bit ADC for unprecedented programmability and flexibility. The line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. The servo features an industry standard 25-tooth output spline with 3mm hex screw. This upgraded version of the Hs-7980TH delivers monster performance.
Ā
Ā Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Specifications:
- Motor Type: Coreless
- Bearing Type: Dual Ball Bearing
- Speed:
- @6.0V: .21sec/60
- @7.4V: .17sec/60
- Torque:
- @6.0V: 500 oz-in
- @7.4V: 611 oz-inĀ Ā
- Size: 43.8×22.4×40.0mm (1.72 x 0.88 x 1.57)
- Weight: 79.00gĀ
Includes:

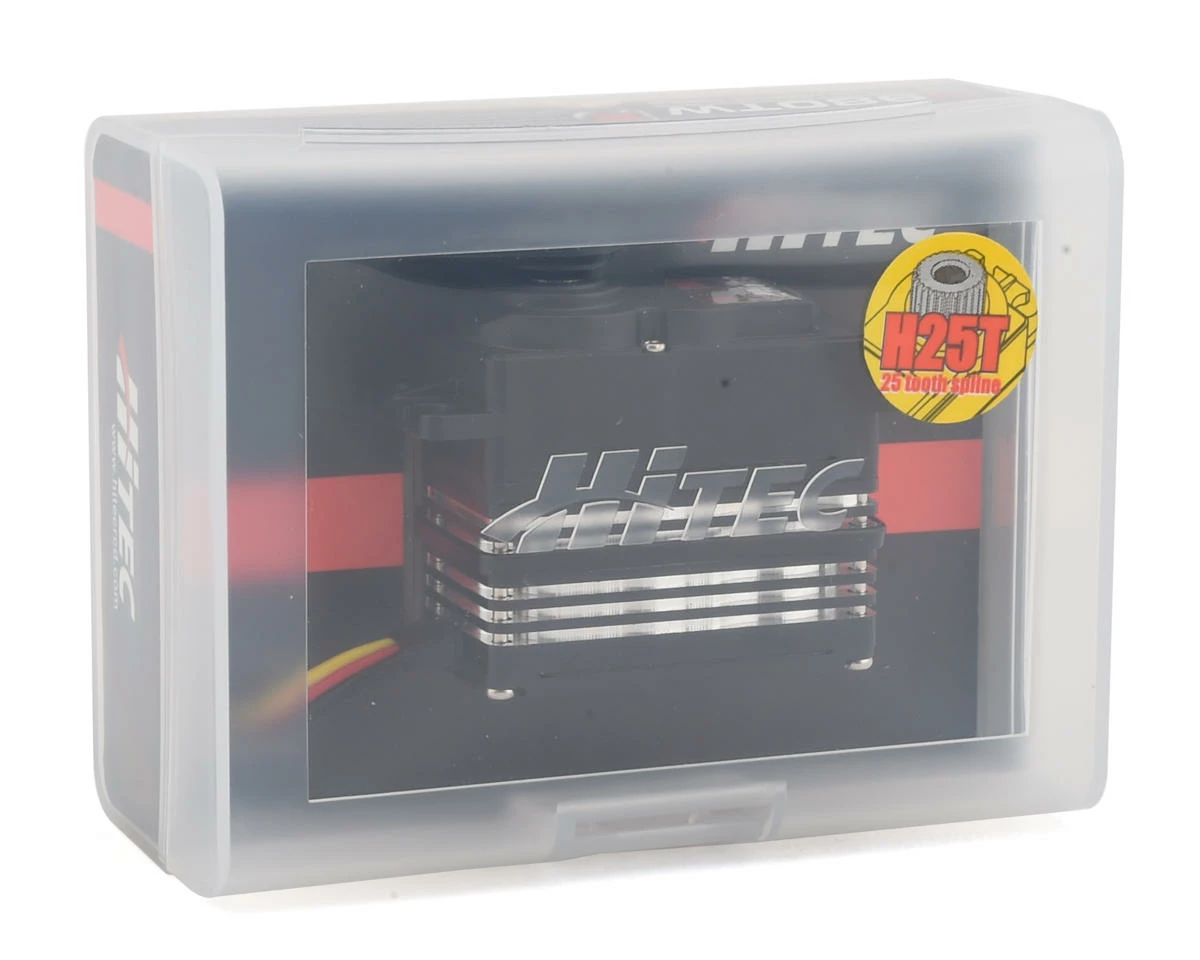

- (1) D-980TW Wide Voltage Monster Torque Servo

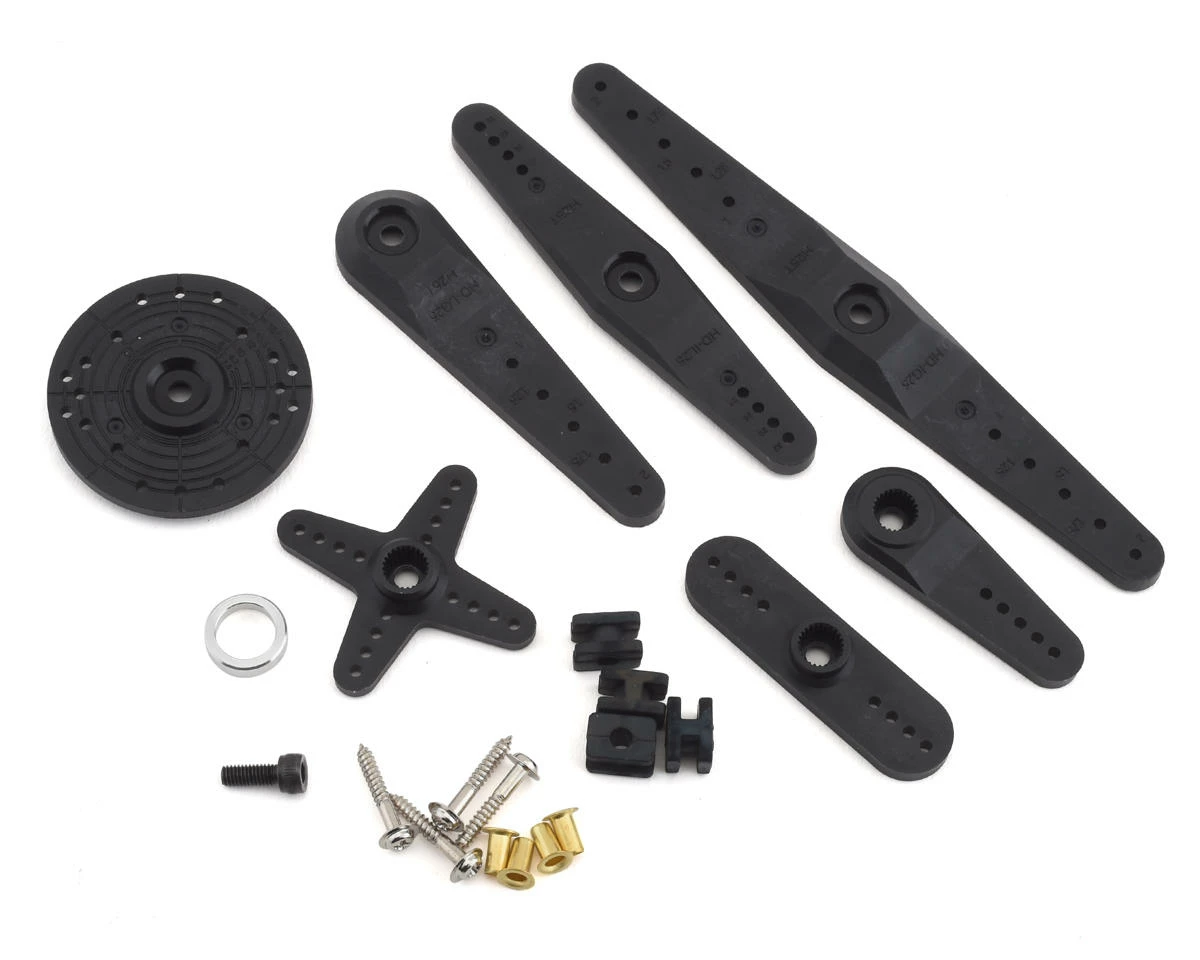

- (1) 0.98″ (25mm) Single Arm servo horn
- (1) 1.2″ (31.5mm) Single ArmĀ servo horn
- (1)Ā 1.7″ (44mm) Double ArmĀ servo horn
- (1)Ā 2.2Ā ” (55mm) Single ArmĀ servo horn
- (1)Ā 2.8″ (72mm) Double ArmĀ servo horn
- (1)Ā 4.2″ (108mm) Double ArmĀ servo horn
- (1)Ā 1.5″ (38mm) 4-Point HornĀ
- (1)Ā 1.4″ (36mm) Round Horn
- (4) Grommets, Eylets and Mounting Screws
- (1) Metal Adapter Ring, extra Horn Screw
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
