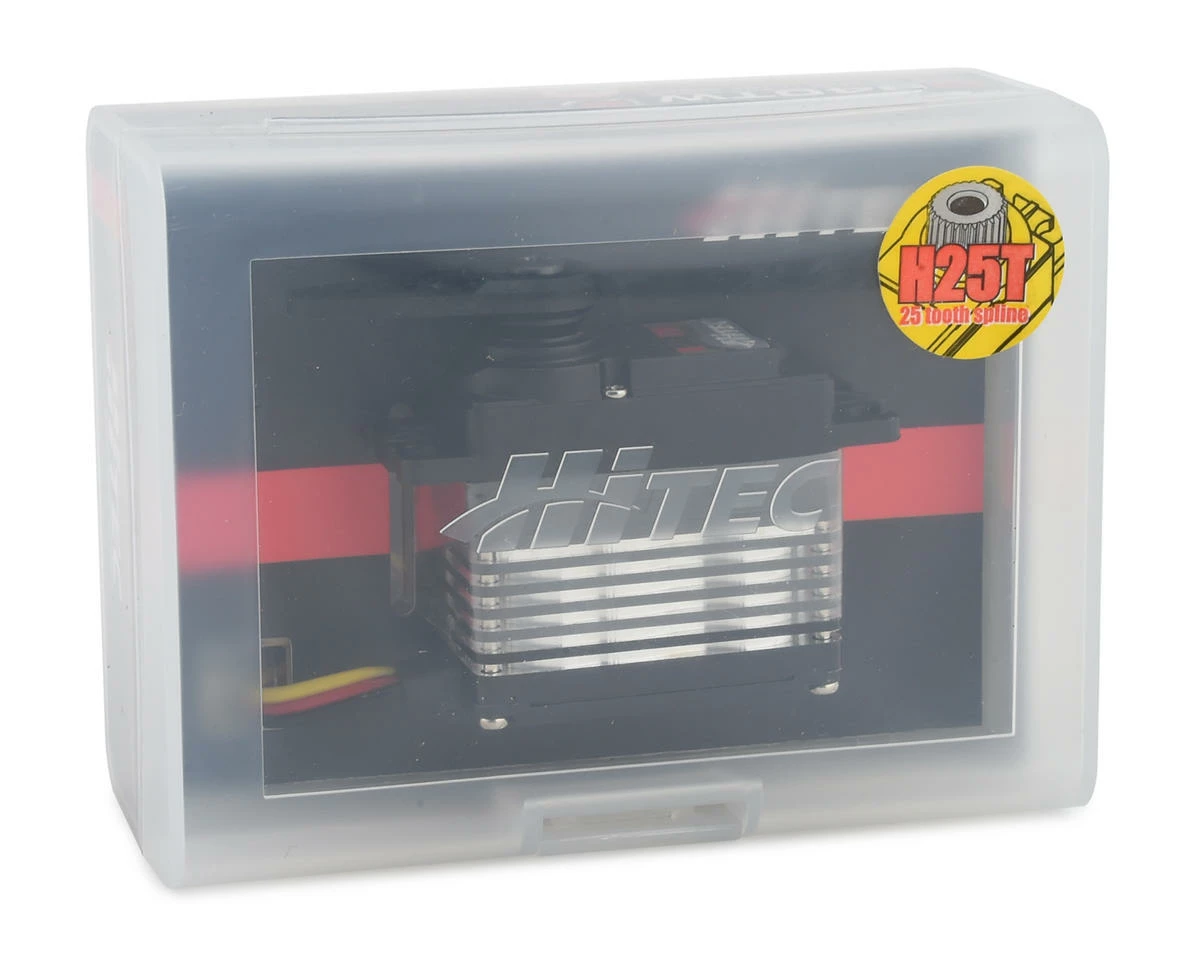

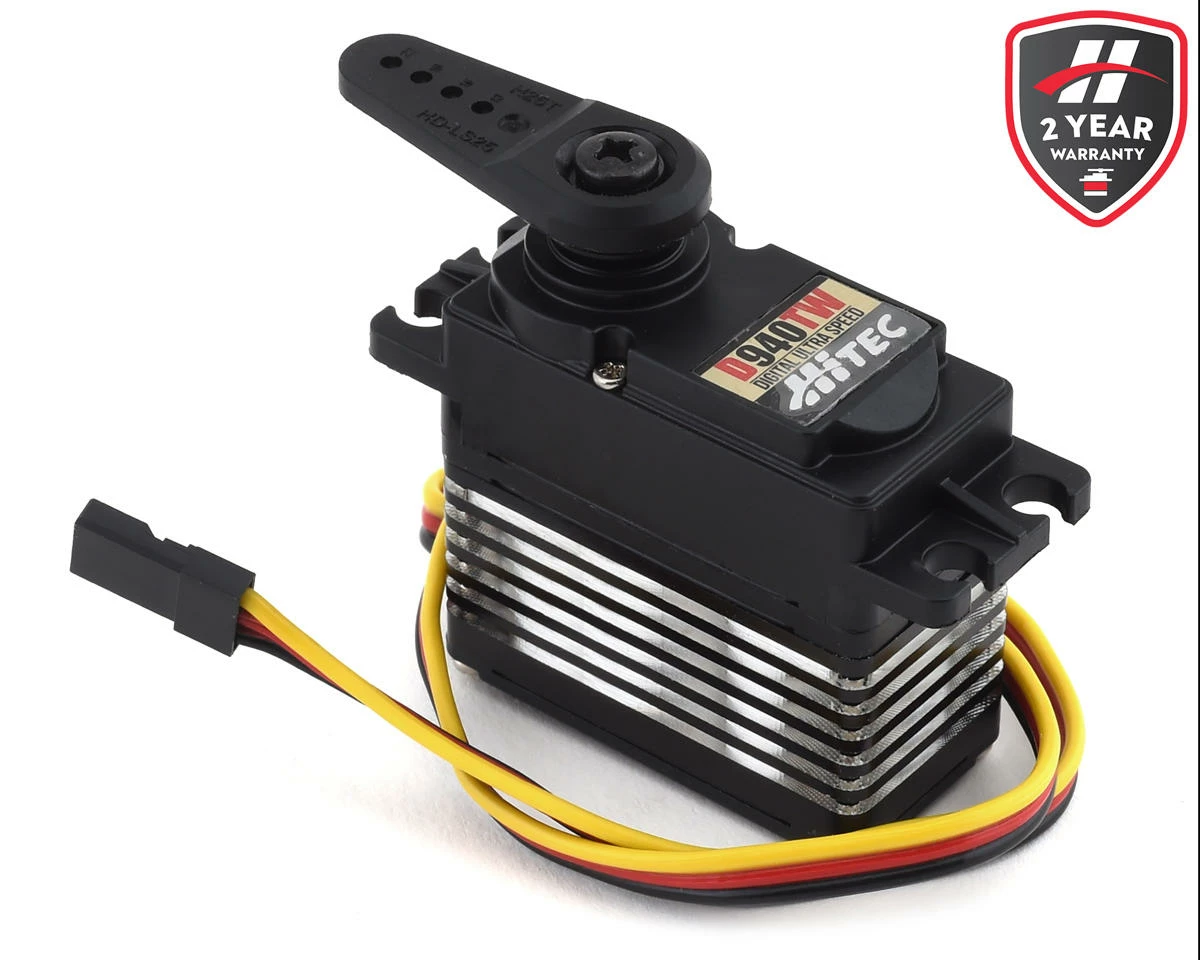

Hitec D940TW D-Series Ultra Torque Titanium Gear Digital Servo (High-Voltage)

This is a Hitec D940TW Titanium Gear Servo, designed with industry leading high-resolution and state-of-the-art ultra-response technology. A 32-bit MCU and 12-bit ADC allow for unprecedented programmability and flexibility. The speedy, powerful line operates on a wide 4.8 – 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo delivers monster performance.

Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:

Size Category: Standard
Type: Digital
Torque: 139 oz-in @ 4.8v, 187 oz-in @ 6.0v, 229 oz-in @ 7.4v
Speed: 0.11 @ 4.8v, 0.07 @ 6.0v, 0.06 @ 7.4v
Dimensions (WxLxH): 1.57 x 0.79 x 1.50 in (39.9 x 20.1 x 38.1 mm)
Bushing Or Bearing: Bearing
Bearing: Dual
Gear Type: Metal
Gear Material: Titanium

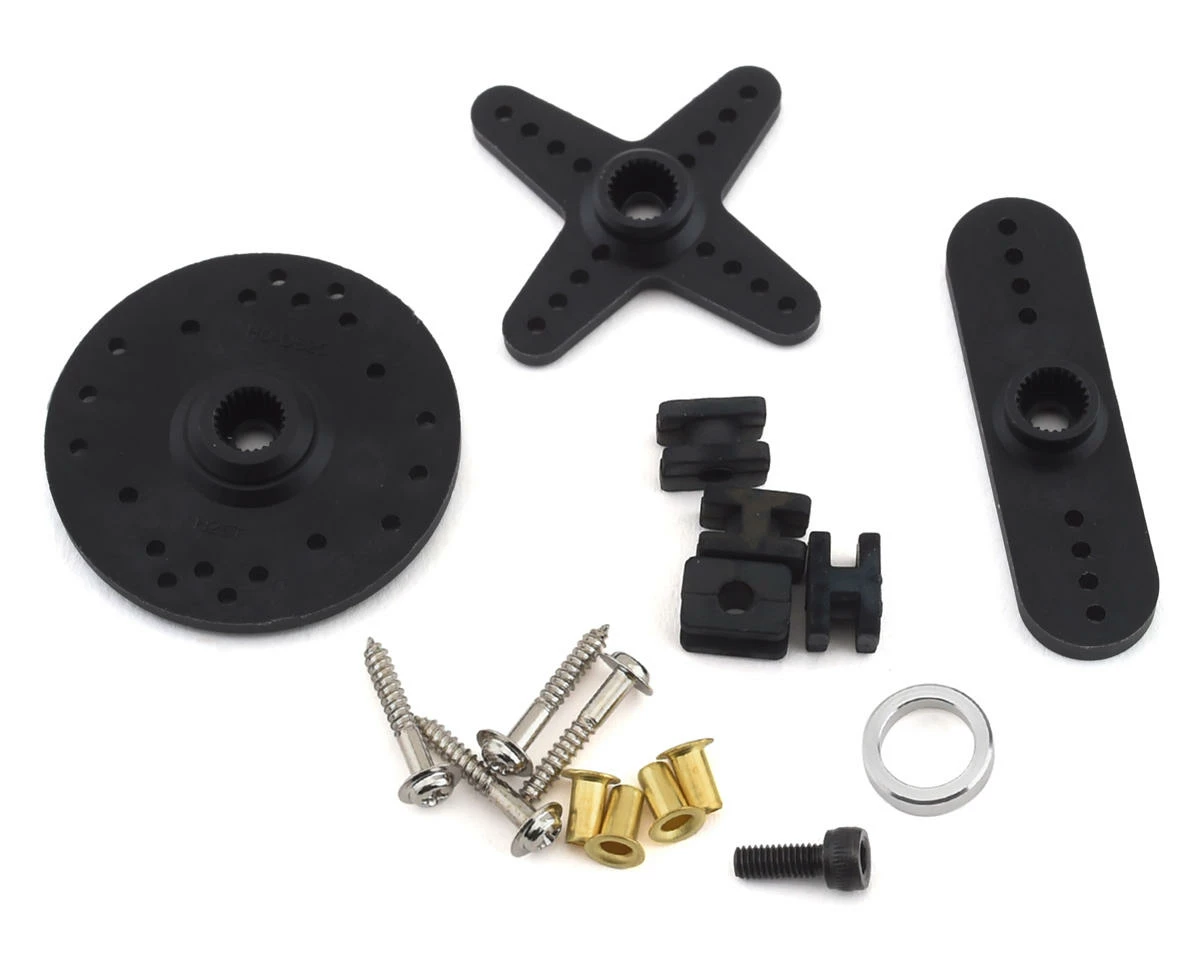

Includes:

This product was added to our catalog on October 25, 2019
