Hitec D485HW Karbonite Standard Servo (High Voltage)

Hitec D485HW Karbonite Standard Servo (High Voltage) - Image 2

Hitec D485HW Karbonite Standard Servo (High Voltage) - Image 3

Hitec D485HW Karbonite Standard Servo (High Voltage)

Original price was: $25.49.Current price is: $17.84.

SKU: 766861 Categories: High Voltage, Servos, Standard Tag: Hitec

Excellent customer service online in a timely manner
Friendly, efficient service, always online.
Safe and Secure Payments, Always
Best price, safe shopping guarantee

Description
Reviews (0)

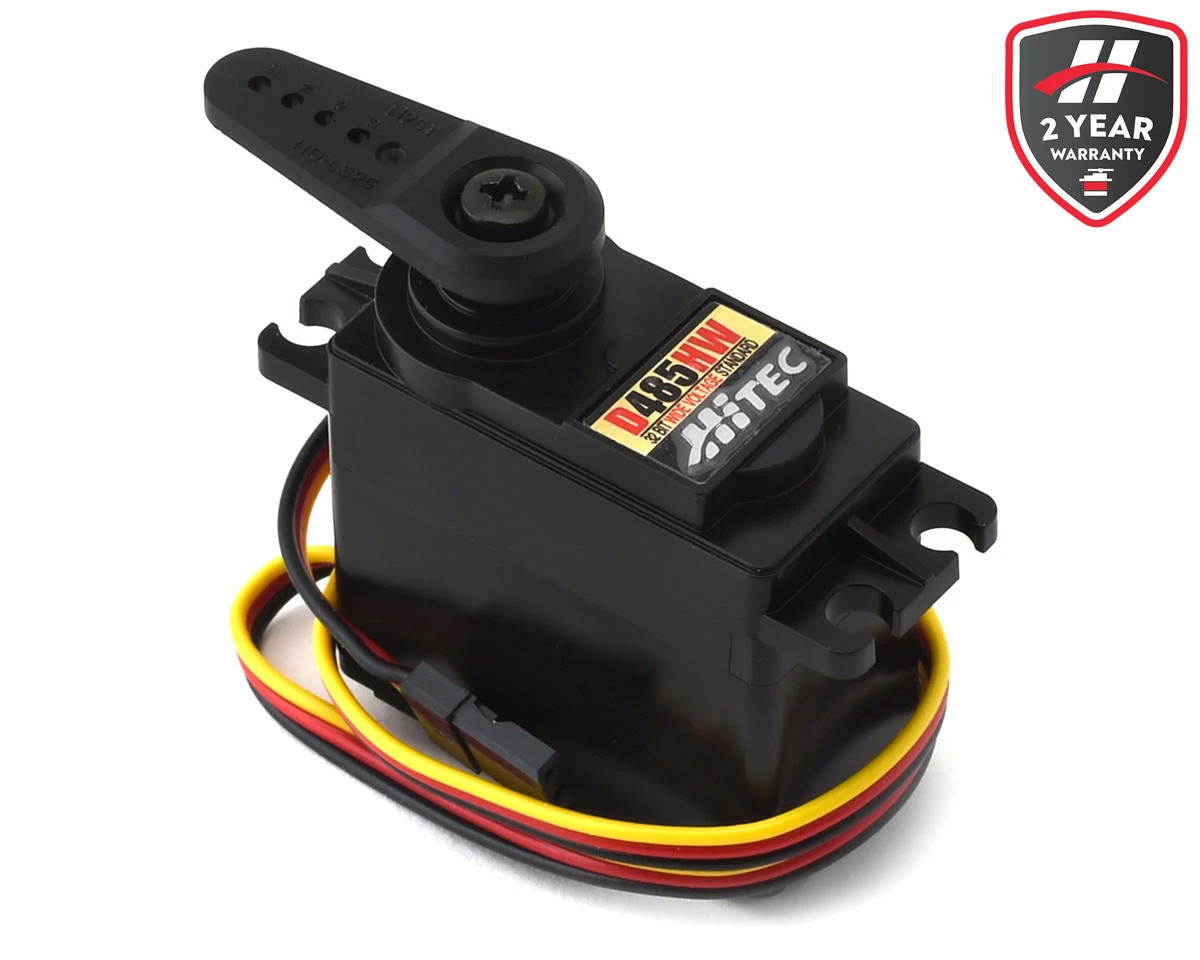

This is the Hitec High Votage D485HW Karbonite Standard Servo. Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Specifications:

Operating Voltage Range (Volts DC): 4.8V ~ 7.4V

Speed (Second @ 60°): 0.20 ~ 0.15

Maximum Torque Range oz./in.: 72 ~ 104

Maximum Torque Range kg./cm.: 4.8 ~ 7.4

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 320mA

Stall Current Draw: 1,500mA

Dead Band Width: N/A

Dimensions (Inches): 1.57 x 0.78 x 1.49

Dimensions (Metric): 39.8 X 19.8 X 38.0

Weight (Ounces): 1.59

Weight (Gram): 45.0

Circuit Type: 32 bit Programable Digital

Motor Type: 3 Pole Cored Carbon Brush

Gear Material: MK 1st Gear & 3 Karbonite

Resin Gears

Bearing Type: Top Ball Bearing

Output Shaft (type / Ømm): 25 / 6

Case Material: Plastic

Dust/Water Resistance: N/A

Connector Gauge (AWG)/Strand Count: N/A

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on November 27, 2019
