FUTABA S3150 Digital Slim Servo

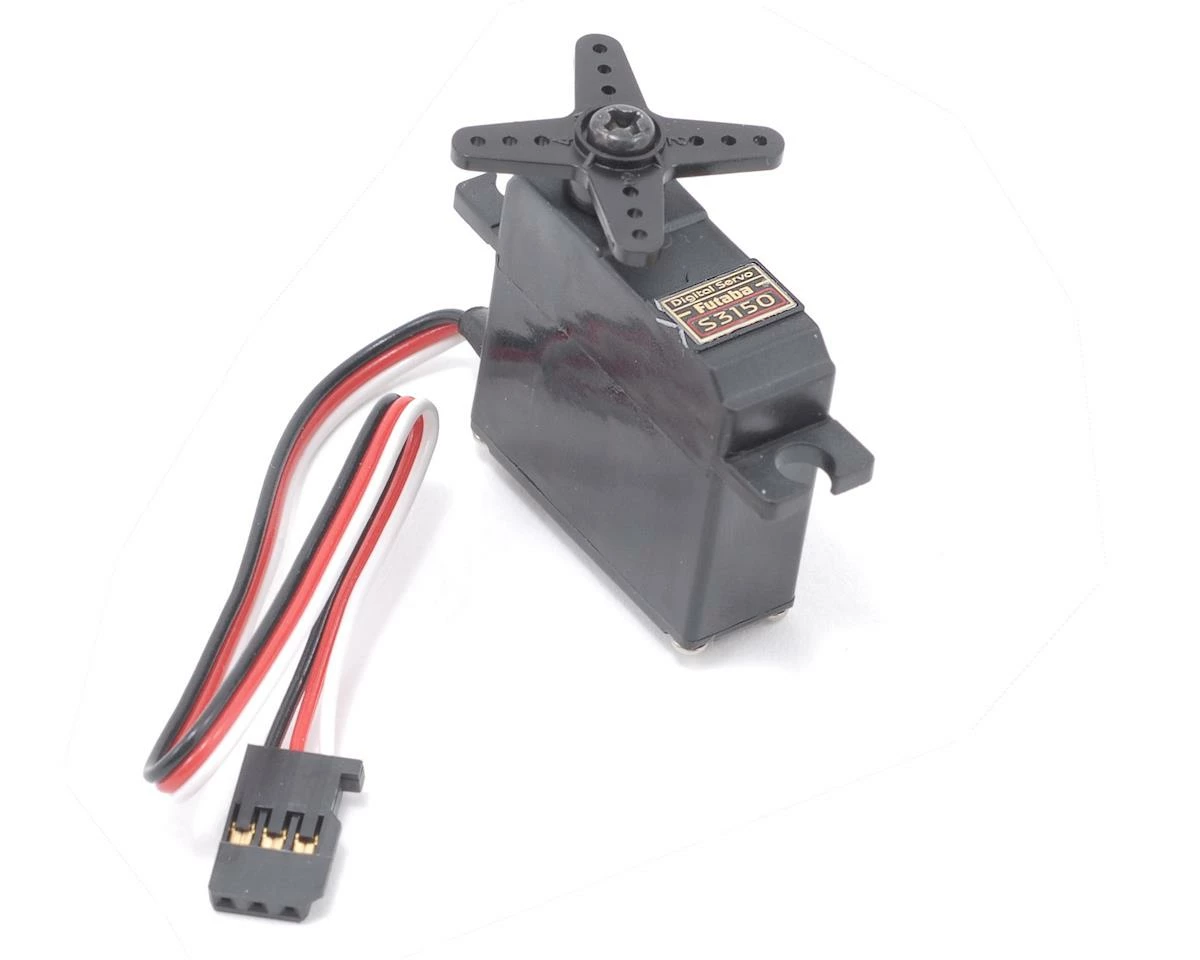

This is the Futaba S3150 Digital Wing Aileron Servo with J Connector.
Designed for aileron applications on gliders, jets, and electric planes.

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES:
Coreless motor 2 ball bearings Metal gears Digitally enhanced microprocessors cut about half the response time from transmitter input to servo reaction Dust and water resistant-not water proof Compact design is especially suited for easy installation inside the wing of smaller gliders, jets and electric planes. Black plastic case One year warranty

INCLUDES:

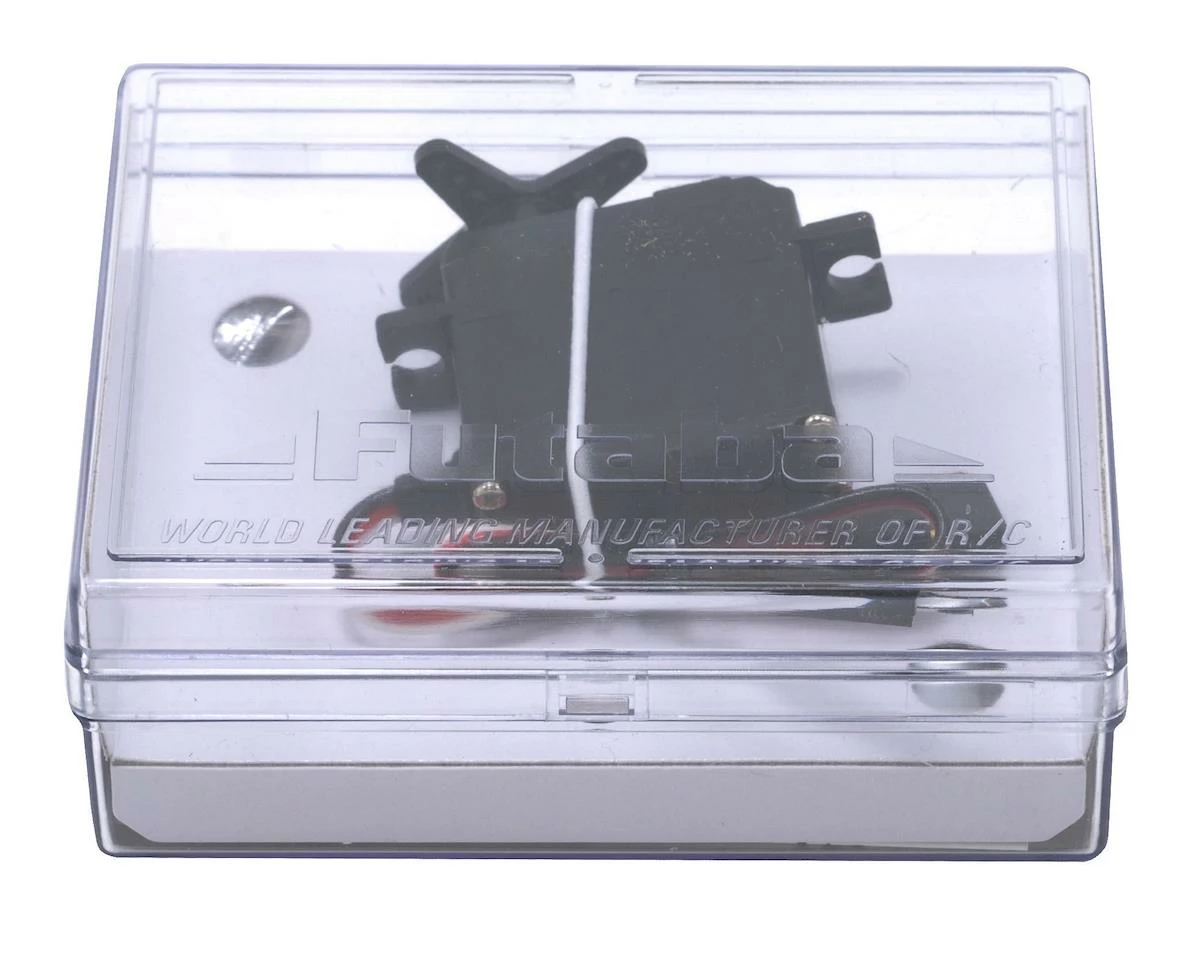

One S3150 Wing Aileron Digital Servo, one 1″ (25mm) star shaped horn, one 1.5mm (39mm) star shaped horn, one 1.8″ (45mm) straight arm, one 1.4″ (35mm) diameter horn, two each-screws, eyelets, and grommets

Specifications

• Speed: .25 sec/60° @ 4.8V
• Torque: 51.4 oz-in @ 4.8V
• Dimensions: 1.1x.5x.8 in (28x13x19.7mm)
• Weight: .80oz (23g)
• Power Supply: 4.8V (Futaba does NOT recommend using 6V)

This product was added to our catalog on April 8, 2008
