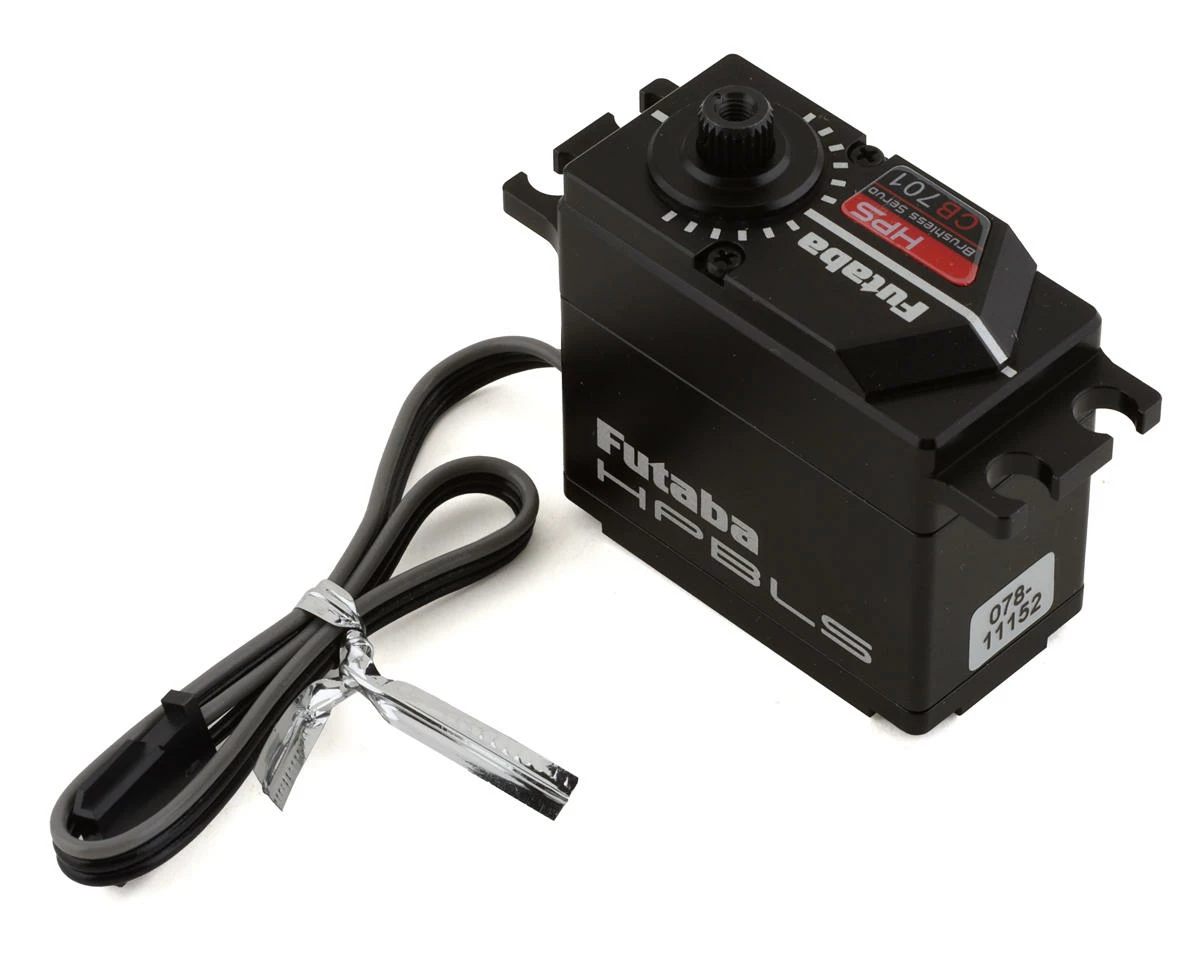

FUTABA HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)

Futaba HPS-CB701 S.Bus Brushless High-Performance Surface Servo. This high torque, high speed servo is an excellent choice for most 1/10 and 1/8 scale vehicles in need of a high performance servo.

Features:

• Suitable for RC cars 1/10 scale on/off road and 1/8 scale on/off road.
• Programmable/HV Brushless Servo.
• Custom New high power Brushless Motor.
• Supports SR mode with T4PM/P, T7PX/R, T10PX.
• Supports UR mode with T10PX.
• Programmable and compatible with S.Bus and S.Bus2 systems.
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
• Upper/middle/bottom: Aluminum Case

Specifications:

• Speed:
• @7.4V: 0.075sec/60°
• @6.0V: 0.09sec/60°
• Torque:
• @7.4V: 680.5 oz-in (49.0kg-cm)
• @6.0V: 583.3 oz-in (42.0kg-cm)
• Dimensions: 40.5×21.0x37.8mm
• Weight: 75g
• Operating Voltage: DC 4.8-8.4V

Includes:

• (1) HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)

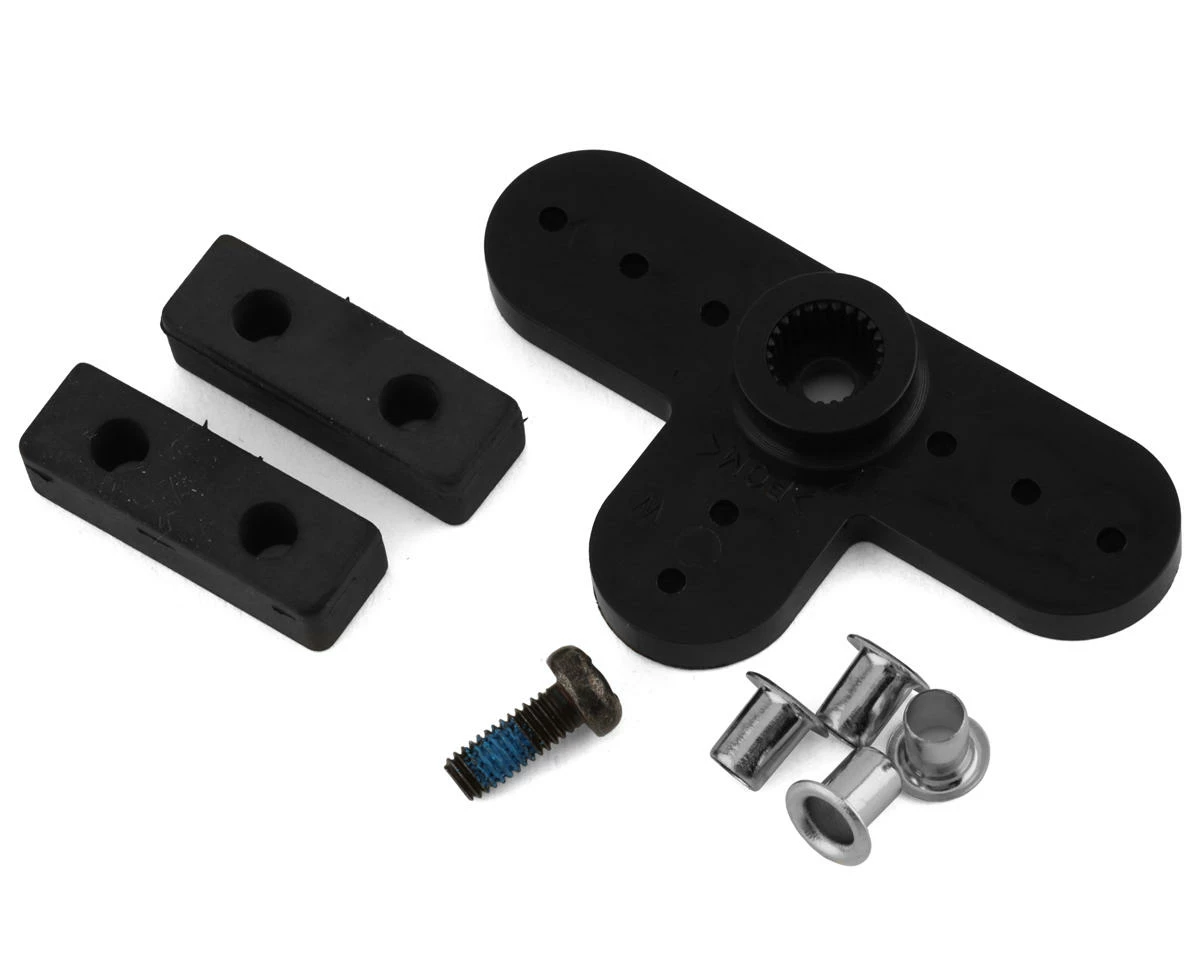

• Servo Horn and Mounting Hardware

This product was added to our catalog on February 28, 2023
