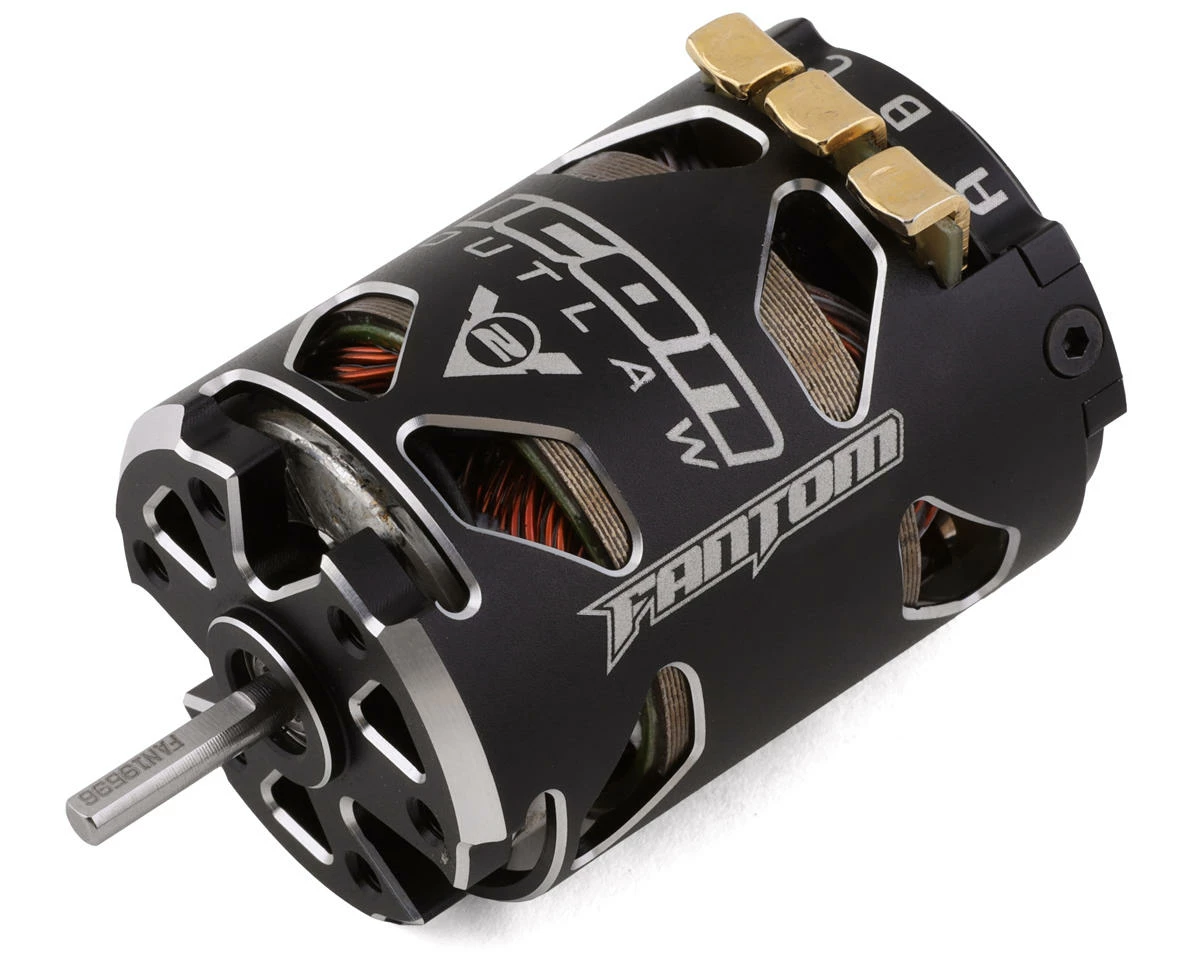

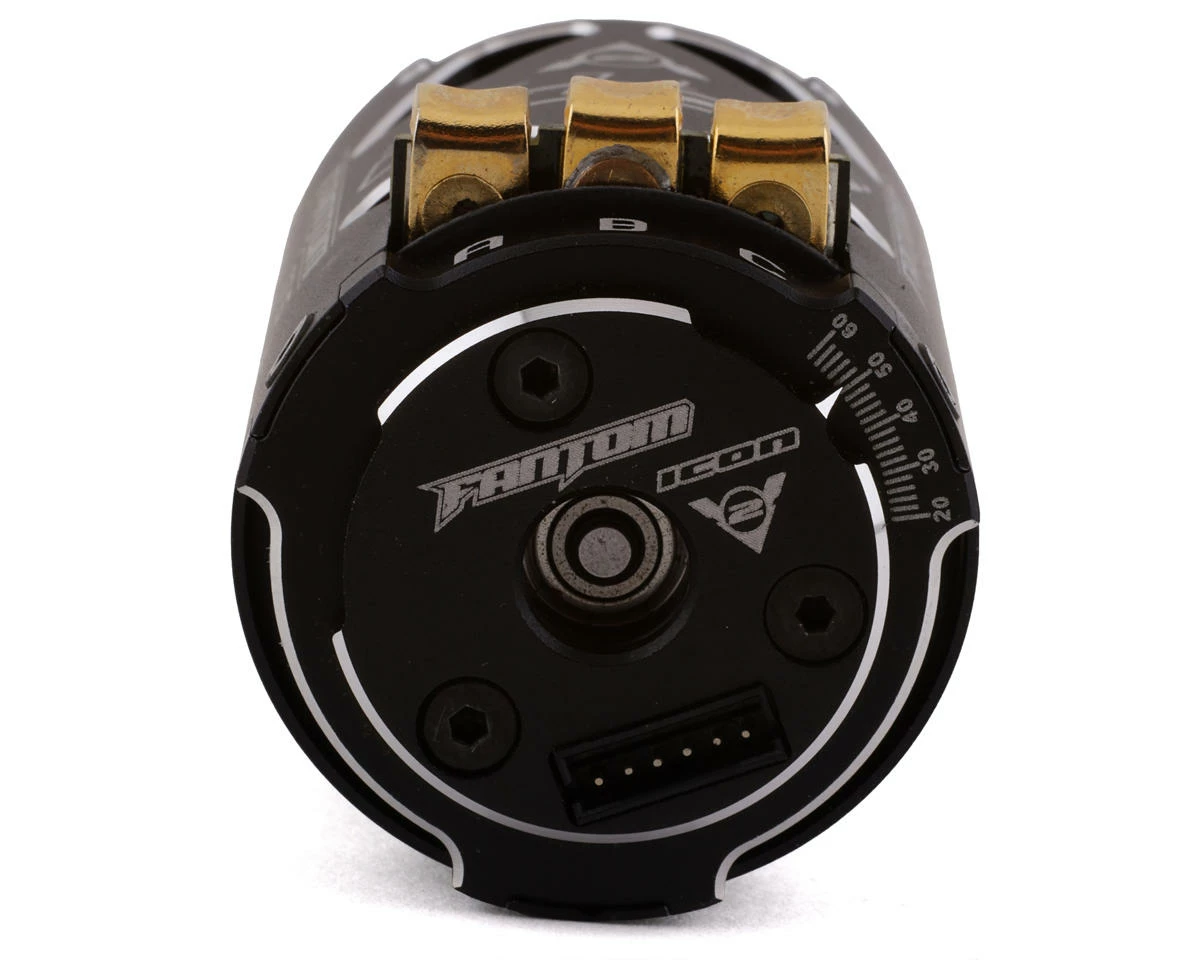

Fantom Helix “Works Edition” Outlaw Brushless Motor (21.5T)

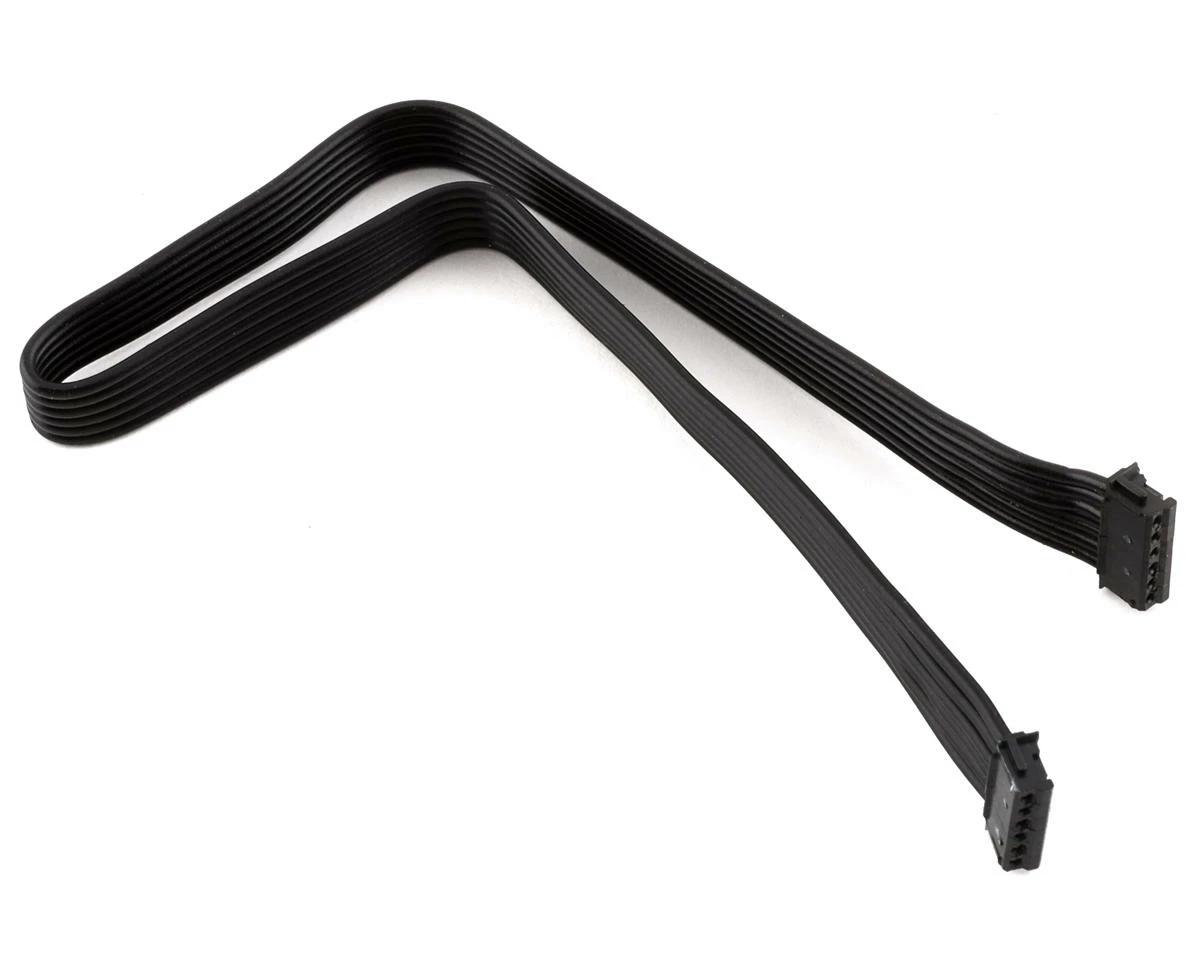

The Fantom ICON Torque V2 “Works Edition” Outlaw Brushless Motor is designed for maximum power, torque and RPM. This motor is designed with the largest pure copper wire for the lowest resistance possible. While this motor is not ROAR legal, it is perfect for classes that allow outlaw motors. Using Fantom’s patented stator design, these motors provide maximum torque and insane RPM. Package includes one brushless motor and one sensor wire.

Works motors include Teflon shims and spacers, the highest grade AXON X10 SUJ2 hybrid bearings and pro titanium timing adjustment screws. This motor is as good as it gets. All test results printed and included.

NOTE: This motor is not ROAR approved and are not legal to use at tracks that require roar approved motors.

• Stator Design for Maximized Torque and Efficiency
• 12.5mm ROAR Spec Rotor Installed with Super High Strength and Heat Resistant Magnet Formula
• Sensor Board is Design for Improved Deviation Accuracy & Reliability
• Maximum Size Pure Copper Wire for the Lowest Resistance Possible
• High-Inductance / Low Resistance, 3mm Aluminum, Silver Plated Collector Ring
• Premium Grade Kawasaki® Steel Stator Plates
• CNC Machined Billet T6 Aluminum End Plate for Precision Bearing Alignment
• High RPM Precision Bearings

Turn: 21.5T

Voltage: 2S

Weight: 5.65oz (161g)

Diameter: 36mm

Length: 53.25mm

Shaft Diameter: 1/8″ (3.175mm)
