Fantom FR745 “Super D” Standard Programmable Servo
Original price was: $159.99.$99.99Current price is: $99.99.
- Excellent customer service online in a timely manner
- Friendly, efficient service, always online.
- Safe and Secure Payments, Always
- Best price, safe shopping guarantee

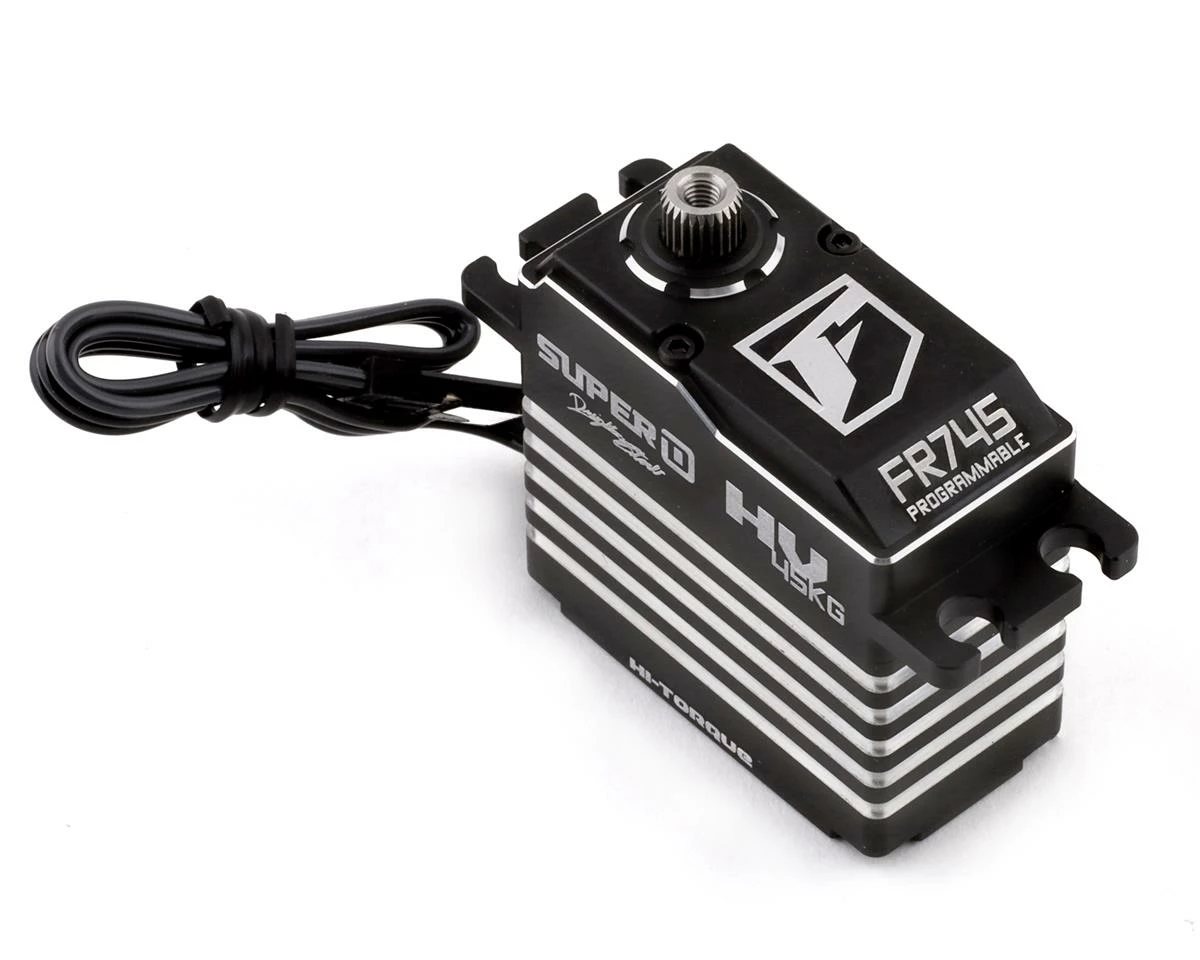

Fantom FR745 “Super D” Standard Programmable Servo. This servo was developed with the help from Fantom team driver Dreighton Stoub a.k.a. “Super D”. The gear train is powered by a brushless motor and included in the package is an aluminum servo horn.
Features:
- High Performance Standard Profile Digital Racing Servo
- Precision Steel Gears
- Chrome Steel Shaft
- High Performance Brushless Motor
- Triple Ball Bearings
- Full Aluminum Cooling Case
- Water and Dust Resistant (not water proof)
- Programmable with Fantom USB Programmer (FAN22805)
- Includes 25 Tooth Aluminum Servo Horn
- Ideal for for all surface 1/10 and 1/8 scale racing applications
Specifications:
- Operating Voltage: 4.8-8.4 V
- Speed:
- 6.0V: 0.115sec/60°
- 7.4V: 0.100sec/60°Â
- 8.4V: 0.085sec/60°Â
- Stall Torque:
- 6.0V: 34 kg-cm (473 oz-in)
- 7.4V: 39 kg-cm (542 oz-in)
- 8.4V: 45 kg-cm (625 oz-in)
- Control System: PWMÂ (Pulse Width Modulation)
- Signal Mode: Digital
- Refresh Rate: 333 Hz
- Neutral Position: 1520uS
- Signal Range: 500 to 2500 uSec
- Dead Band: 2 uSec
- Operating Travel: 180º ± 10°
- Mechanical Angle: 220°
- Gears: Steel
- Case Material: Full Aluminum
- Size LxWxH: 40mmx20x37.2mm (1.57×0.78×1.46in)
- Operating Temperature: 5° to 158º F.
- Weight: 83g
- Connector Wire:Â 150mm JR
Includes:

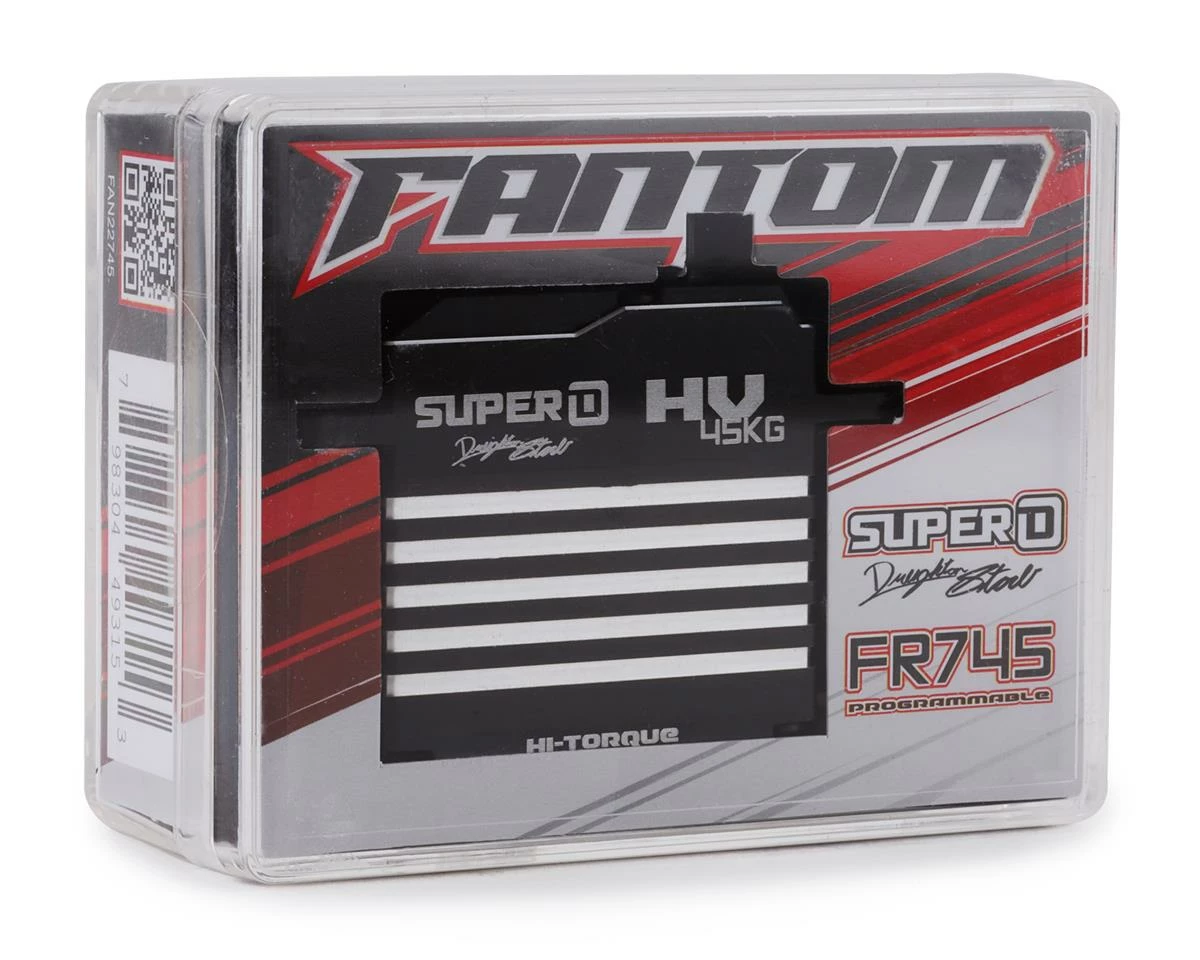

- (1) FR745 Servo

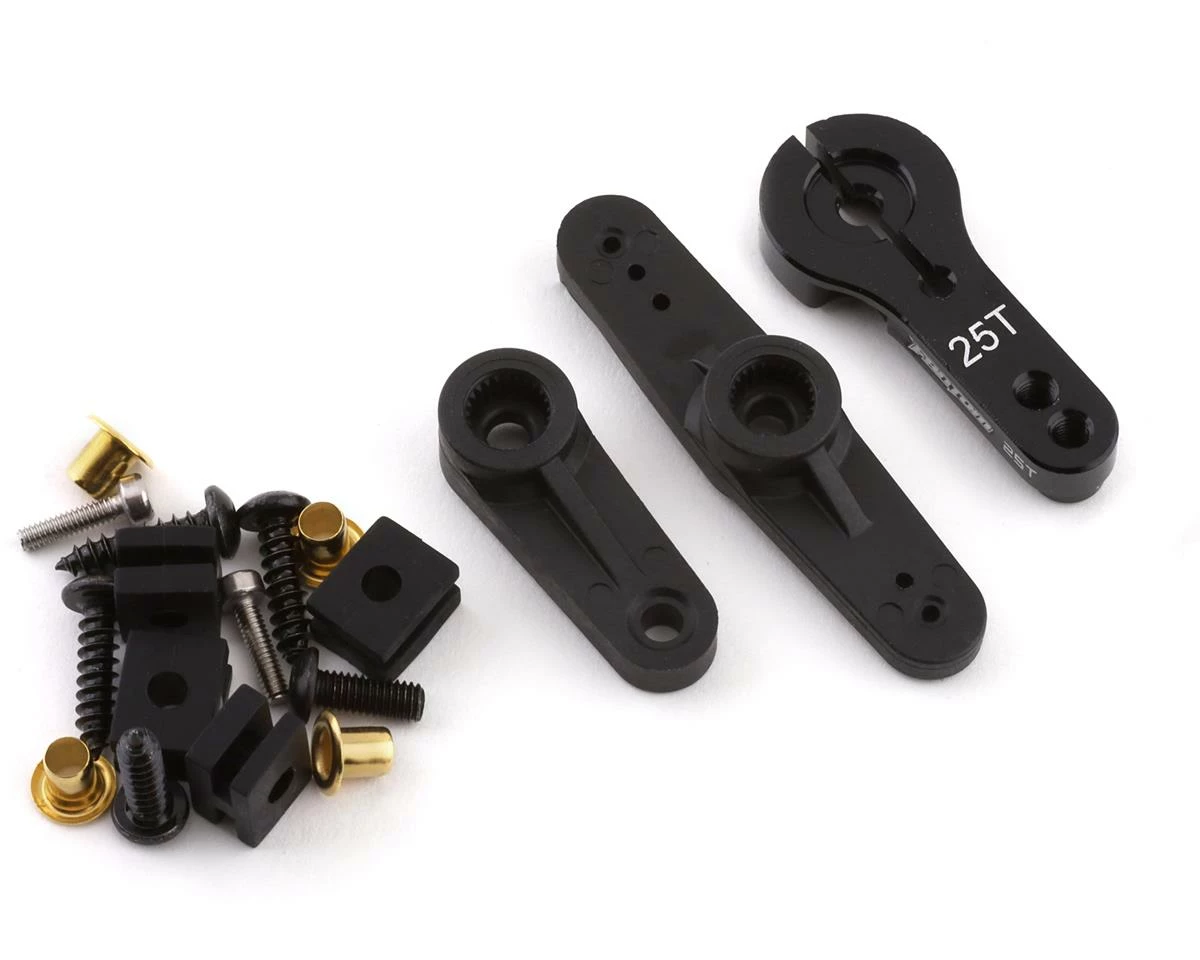

- (1) Aluminum servo horn
- (2) Plastic servo horns
- Mounting hardware
