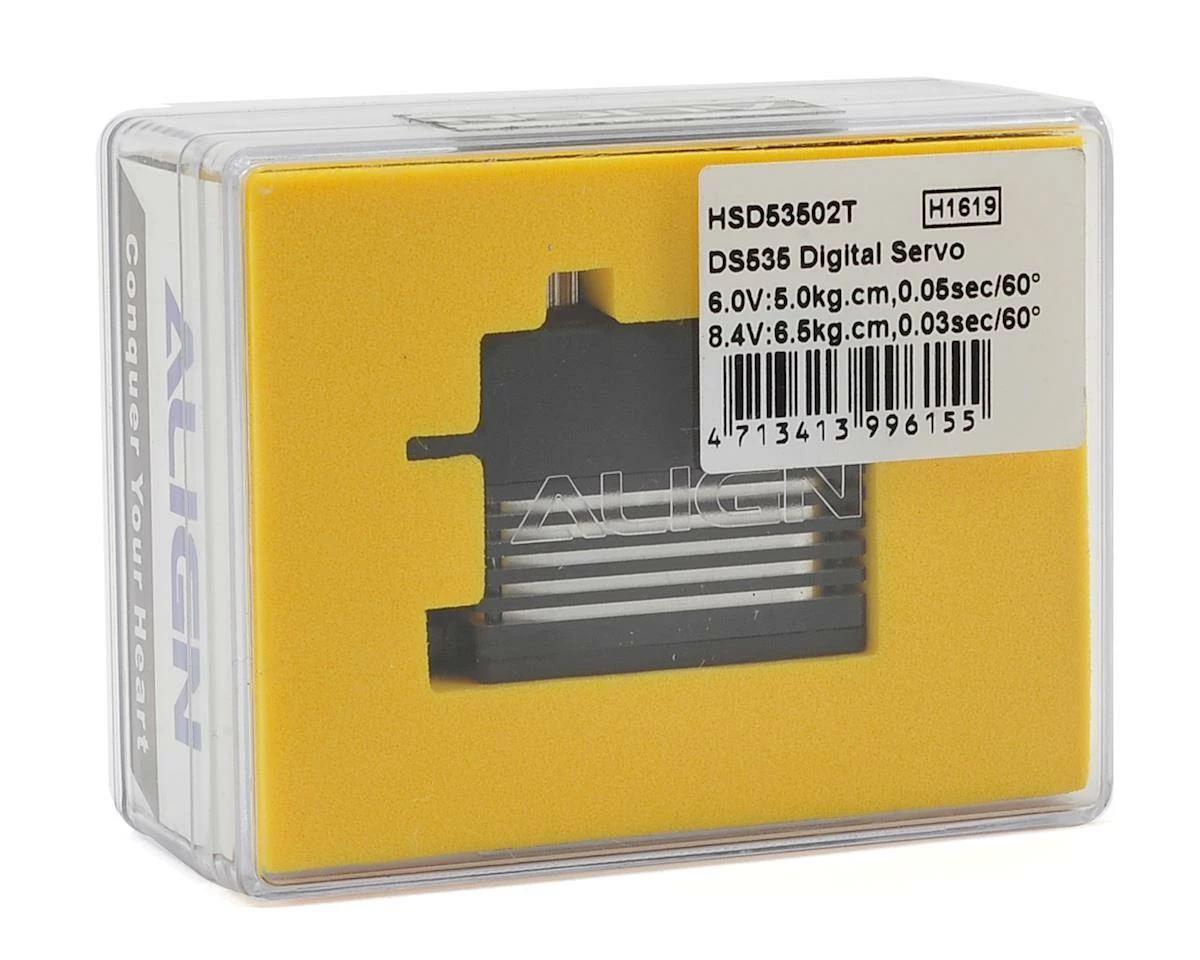

ALIGN DS535 Digital Metal Gear Mini Tail Servo (High Voltage)

This is an Align DS535 Digital Servo. This metal gear servo features an aluminum middle case and high resolution for precise movements on tail rotor applications for helicopters.

Features:

• Coreless Motor Design for fast speed, high efficiency, and low power consumption
• High Voltage Support
• High rigidity metal gears with high precision and durable structure characteristics
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency
• Powerful and precise servo suitable for T-Rex 500 CCPM tail use

Specifications:

• Torque:
• @ 6.0V: 69.4 oz-in (5.0kg-cm)
• @ 8.4V: 90.22 oz-in (6.5kg-cm)
• Speed:
• @6.0V: 0.05sec/60°
• @8.4V: 0.035sec/60°
• Voltage: DC 4.8-8.4V
• Temperature Range: -F°F ~ 140F° (-20°C ~ +60°C)
• Dimension: 35.1×15.1x29mm
• Weight: 29g
• Band: 1520μs standard band

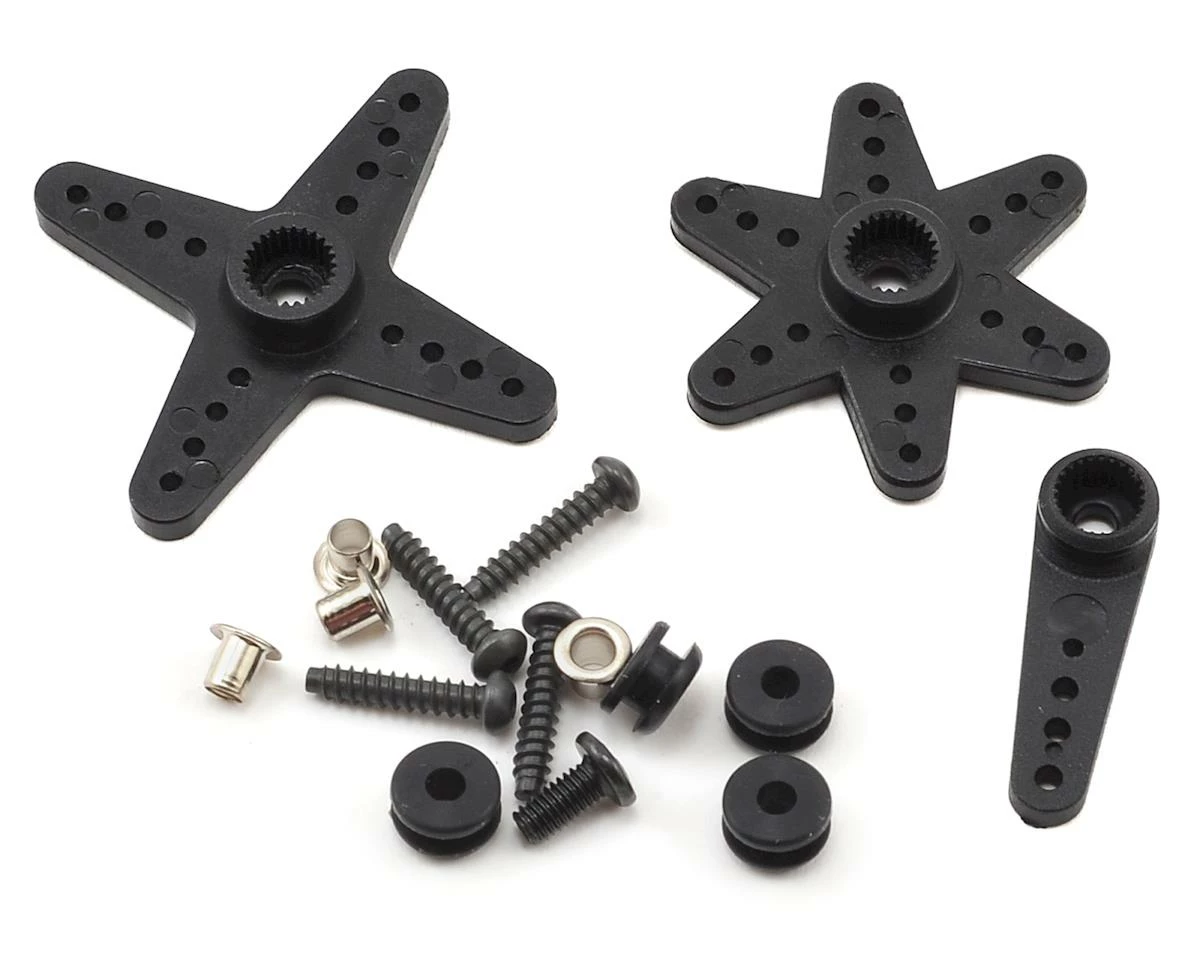

Included Accessories:

• (4) Rubber damper
• (4) Brass grommet
• (4) Socket button head tapping screw (T2.6x12mm)
• (1) Servo horn set

This product was added to our catalog on November 2, 2016
